HT6
HANDHELD TERMINAL
Smart Precision in the Palm of Your Hand
Become a Dealer

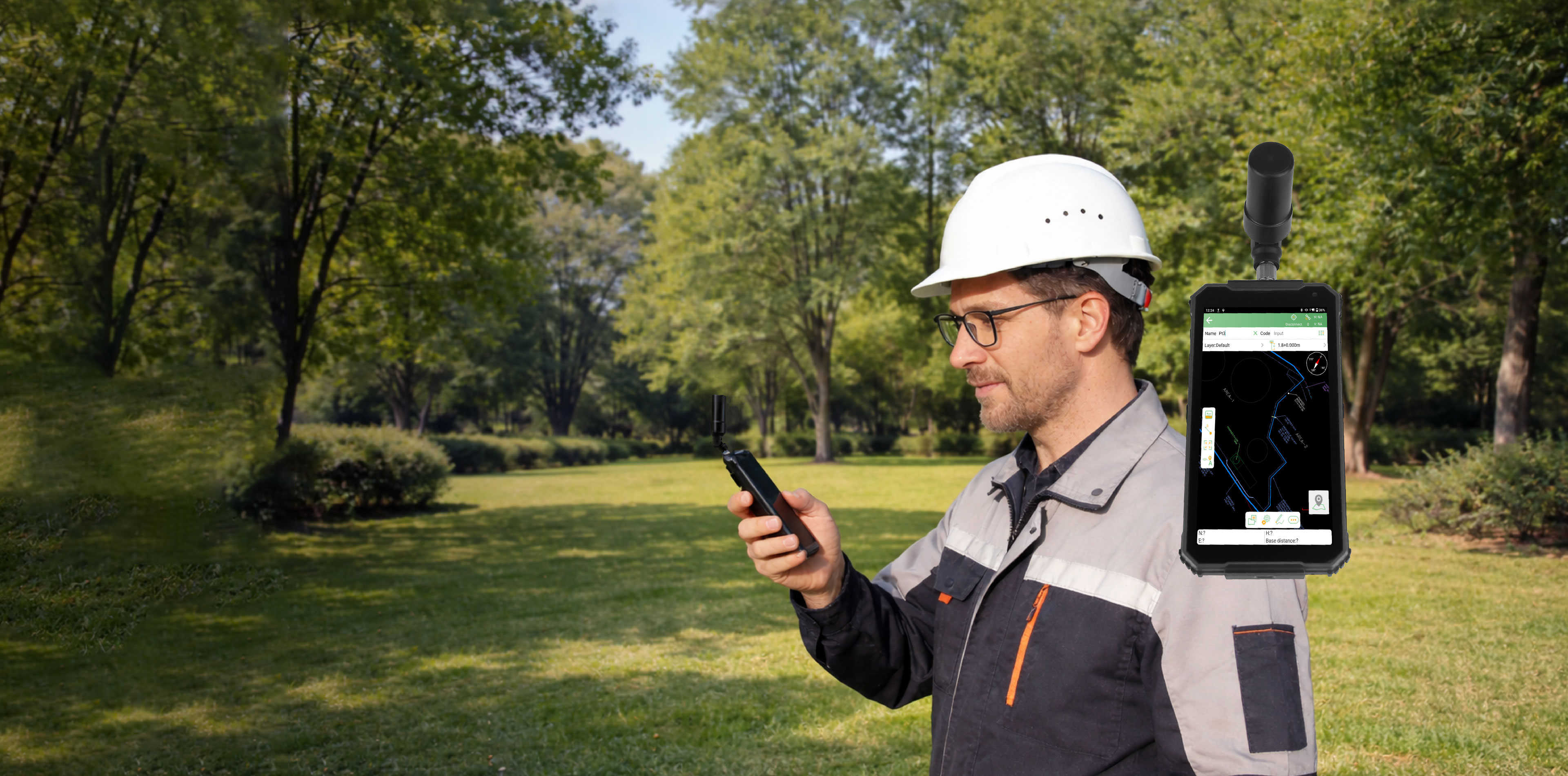

All-in-One Handheld Design
With the integrated RTK GNSS engine and smart terminal in one compact handheld device, users can perform positioning and data collection tasks directly in the field without external controllers or complex setup.
Centimeter-Level Accuracy
With a 1408-channel GNSS engine and full-constellation tracking, the HT6 delivers reliable centimeter-level RTK accuracy for surveying and GIS applications even in complex and partially obstructed environments.

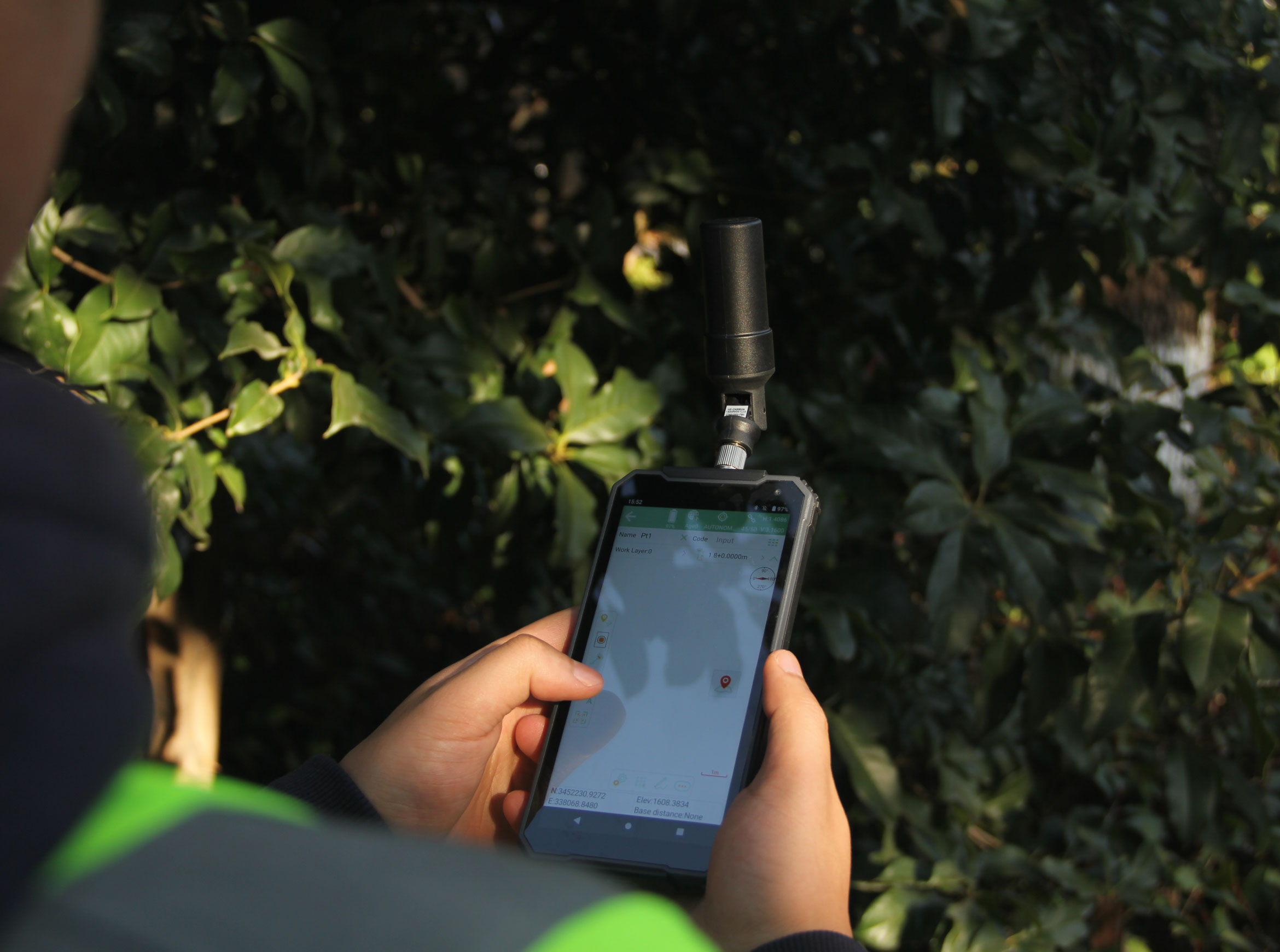

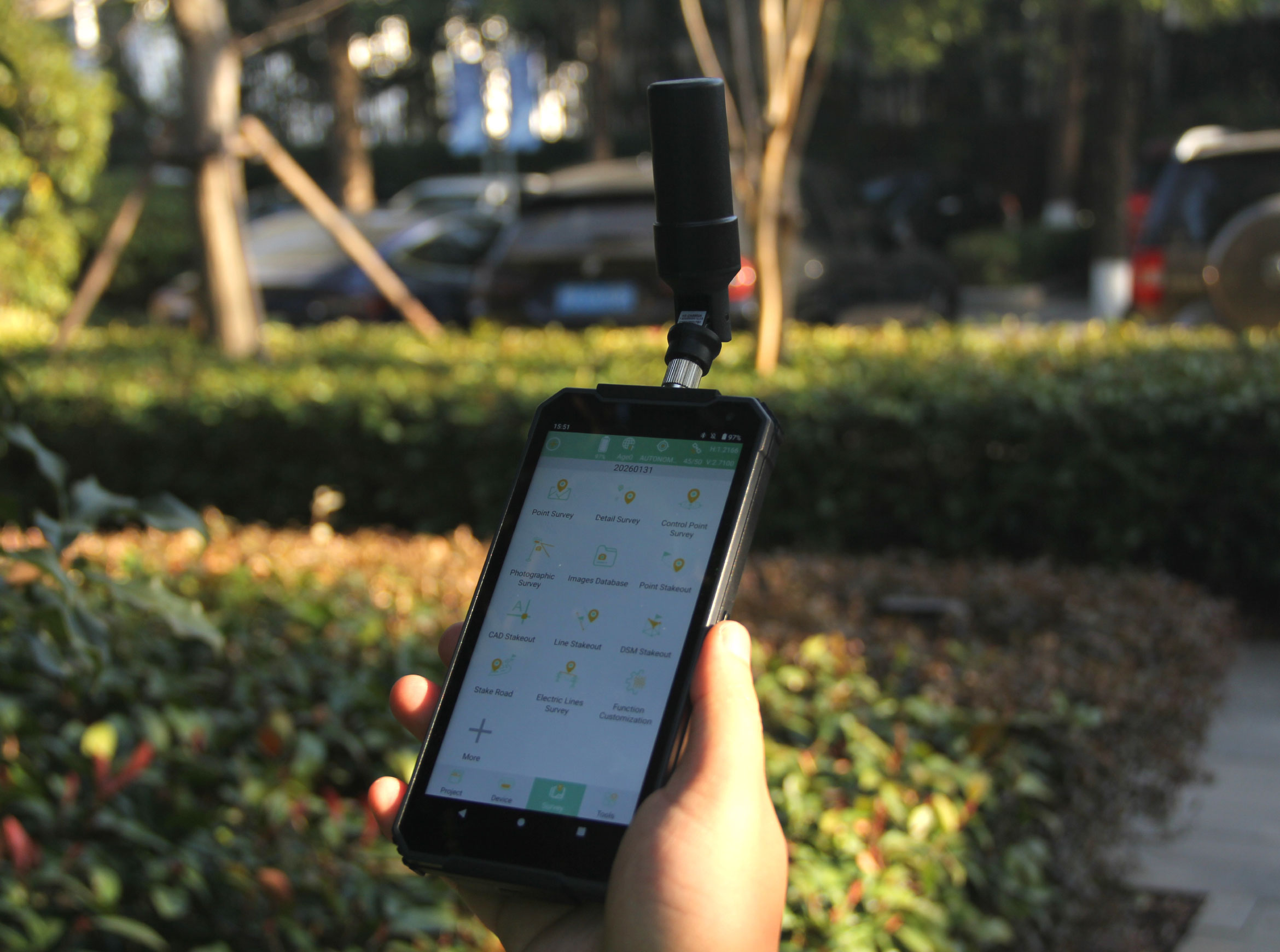

6” Sunlight-Readable Touchscreen
With the 6-inch sunlight-readable touchscreen, users can clearly view maps, points and measurement graphics during field surveying and operate smoothly even under bright daylight conditions.
Handheld Design
Centimeter Accuracy
6” Touchscreen
All-in-One Handheld Design
With the integrated RTK GNSS engine and smart terminal in one compact handheld device, users can perform positioning and data collection tasks directly in the field without external controllers or complex setup.

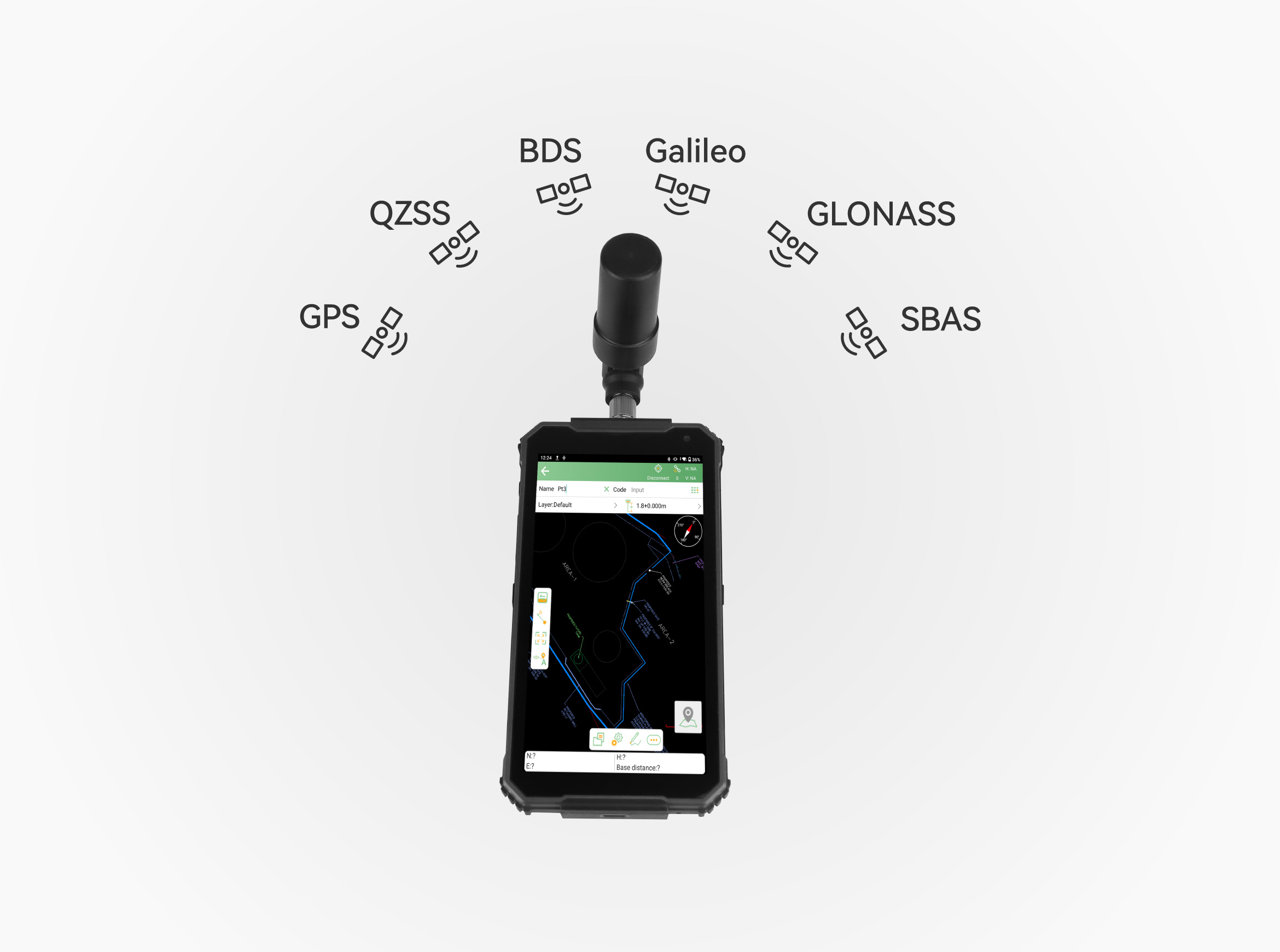

Centimeter-Level Accuracy
With a 1408-channel GNSS engine and full-constellation tracking, the HT6 delivers reliable centimeter-level RTK accuracy for surveying and GIS applications even in complex and partially obstructed environments.
6” Sunlight-Readable Touchscreen
With the 6-inch sunlight-readable touchscreen, users can clearly view maps, points and measurement graphics during field surveying and operate smoothly even under bright daylight conditions.

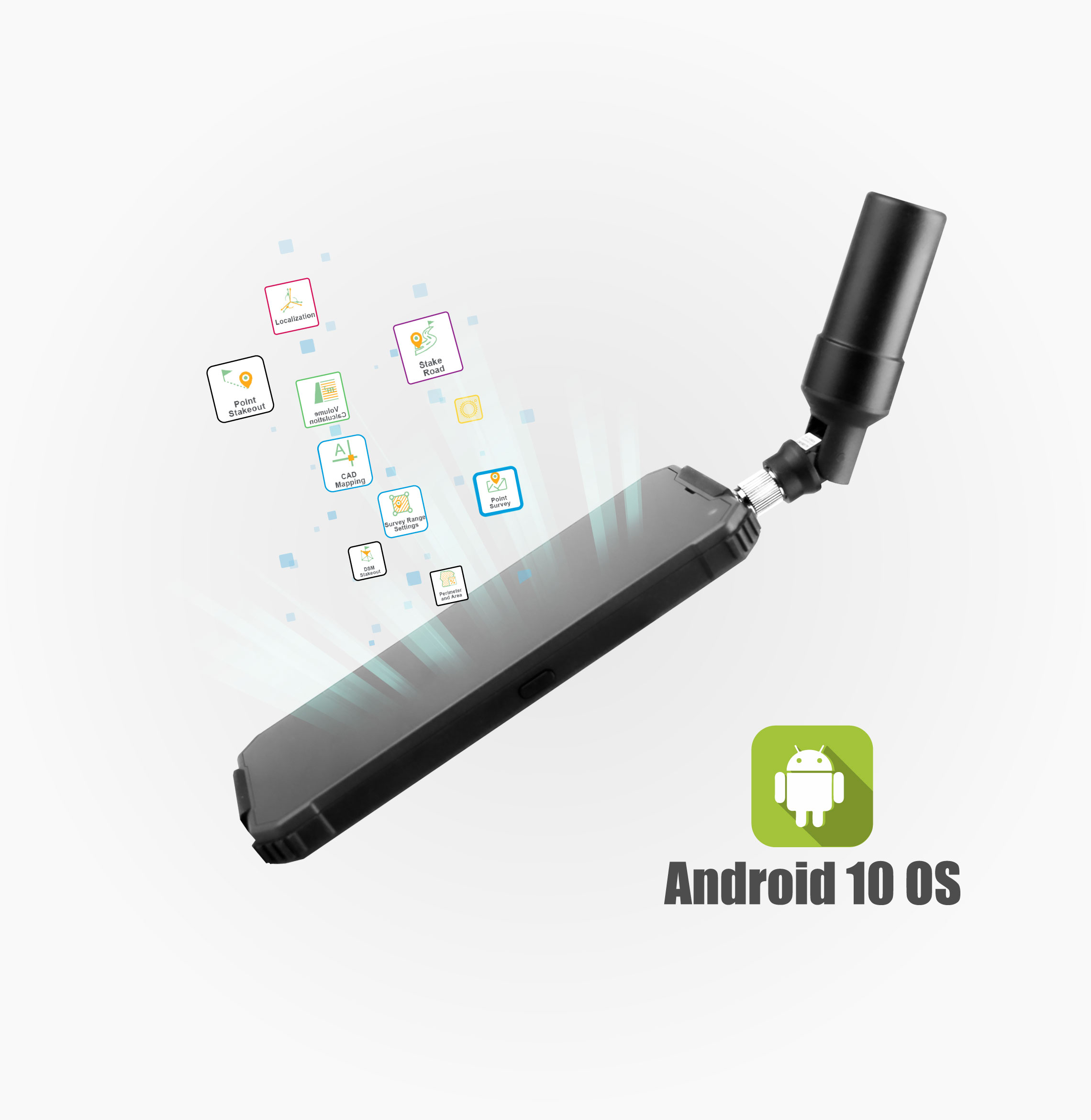

Android 10 OS & Software Compatibility
Powered by a Qualcomm octa-core processor and Android 10 OS, the HT6 provides a stable and flexible platform for professional applications and ensures compatibility with mainstream surveying and GIS software.

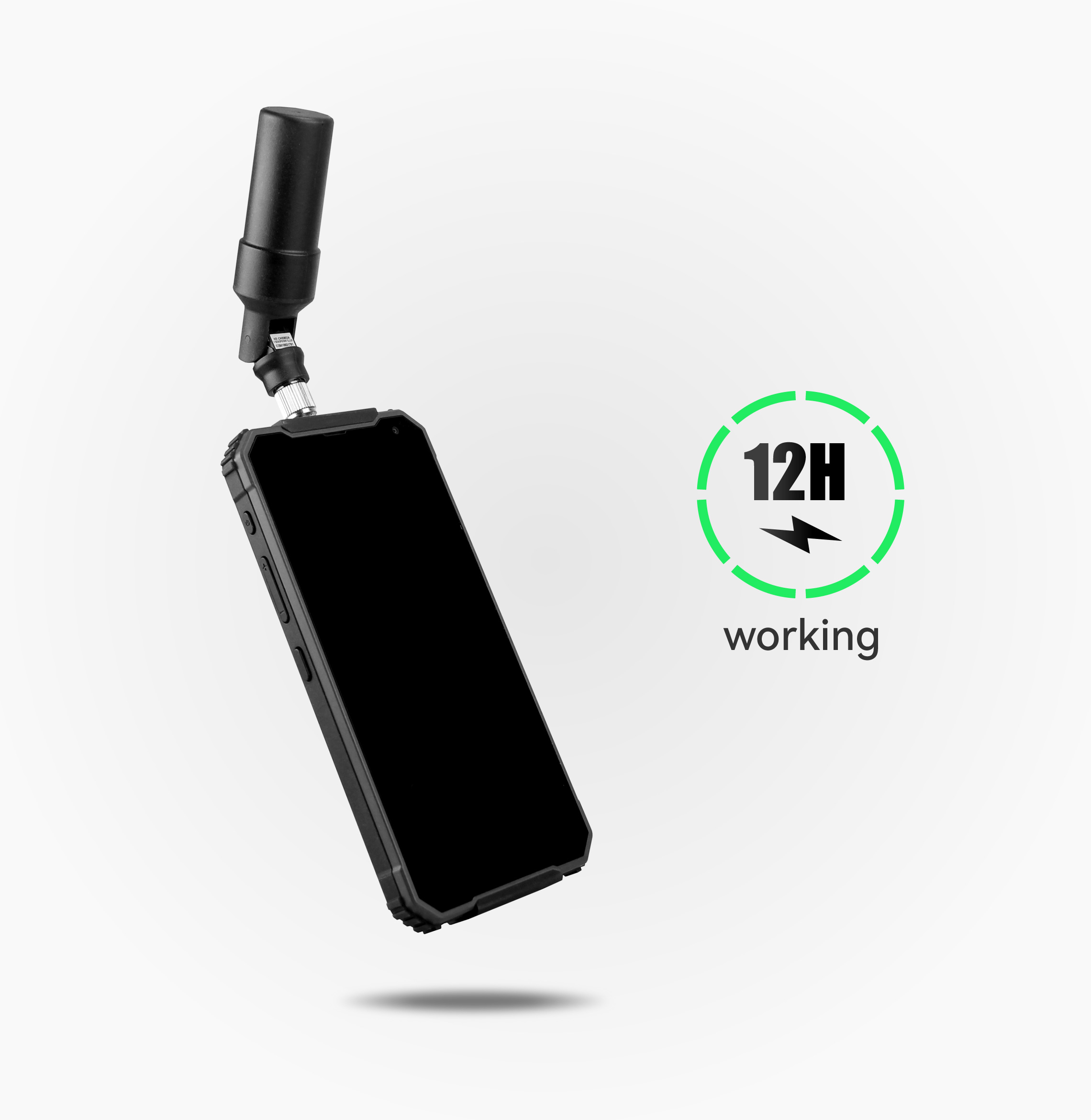

12 Hours Long-Lasting Battery
With a built-in 5000mAh battery and optimized power management, the HT6 supports full-day field operation and reduces the need for frequent recharging during extended outdoor tasks.

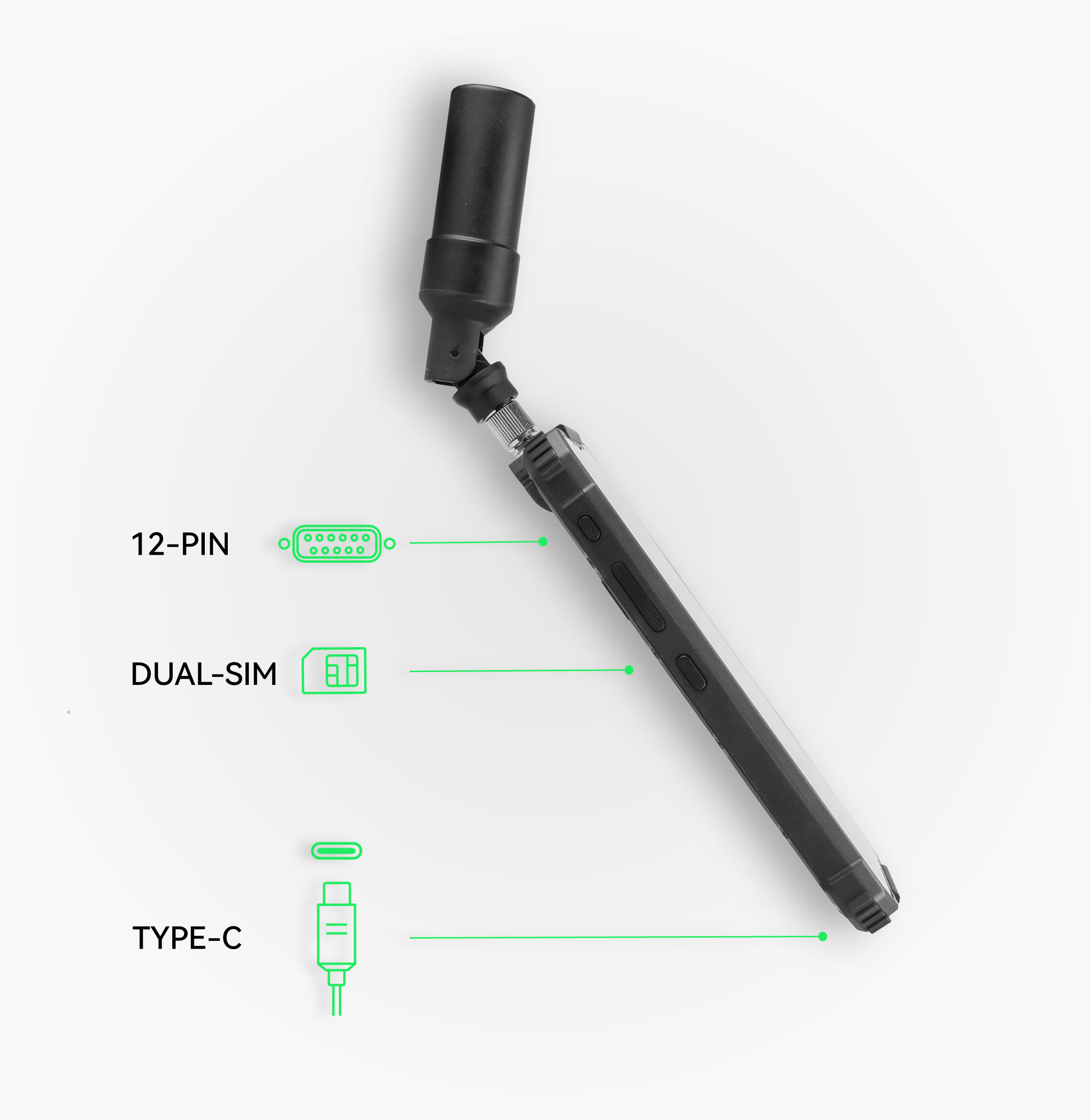

Flexible Connectivity & Interfaces
With dual Nano-SIM, Wi-Fi, Bluetooth and NFC modules, the HT6 supports real-time data transmission and easy connection with cloud services and external industrial devices.

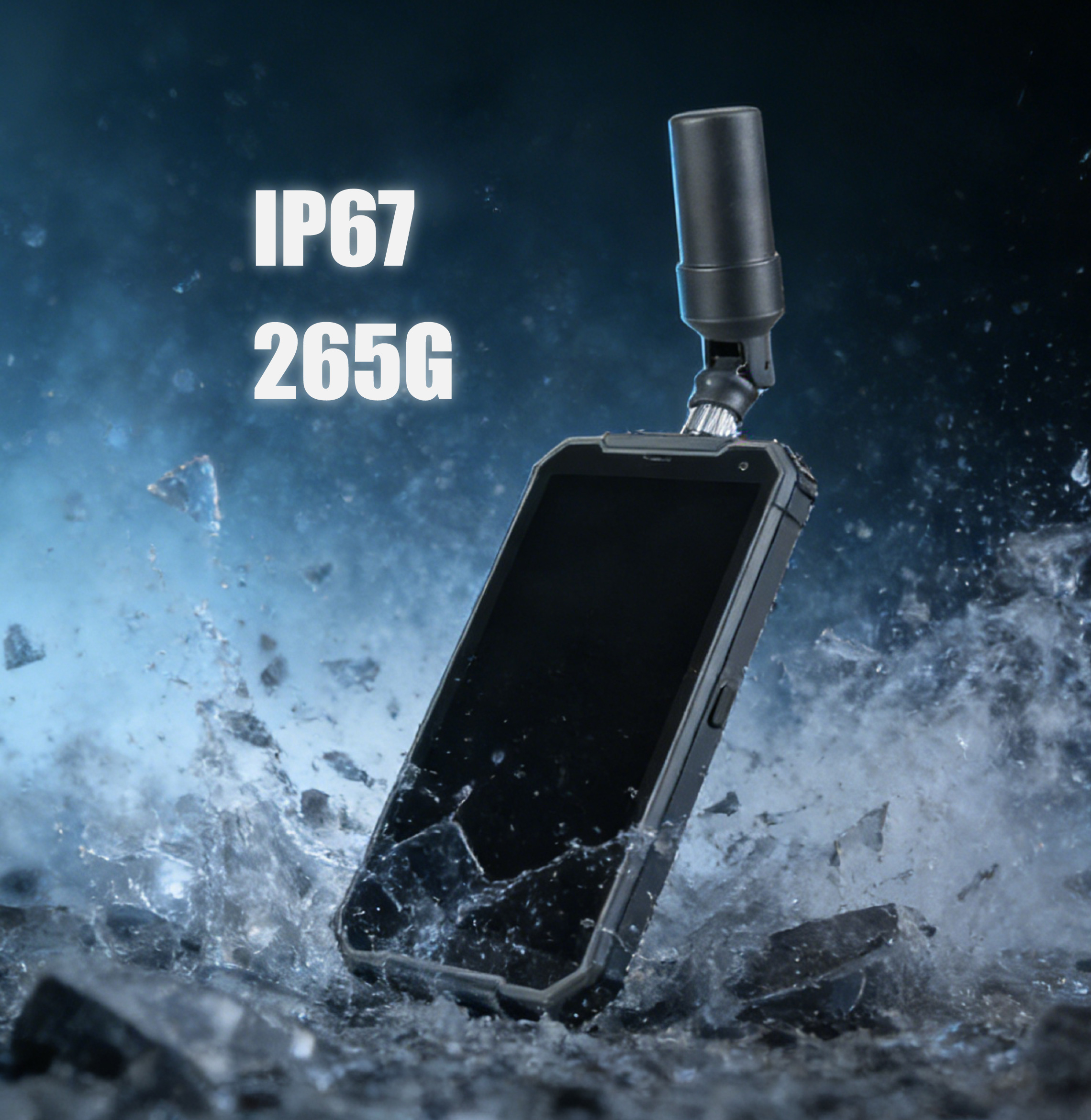

Rugged Design for Outdoor Use
With IP67 protection and MIL-STD-810G compliance, the HT6 operates reliably in harsh outdoor environments including dust, water, vibration and extreme temperature conditions.
Software & Platform

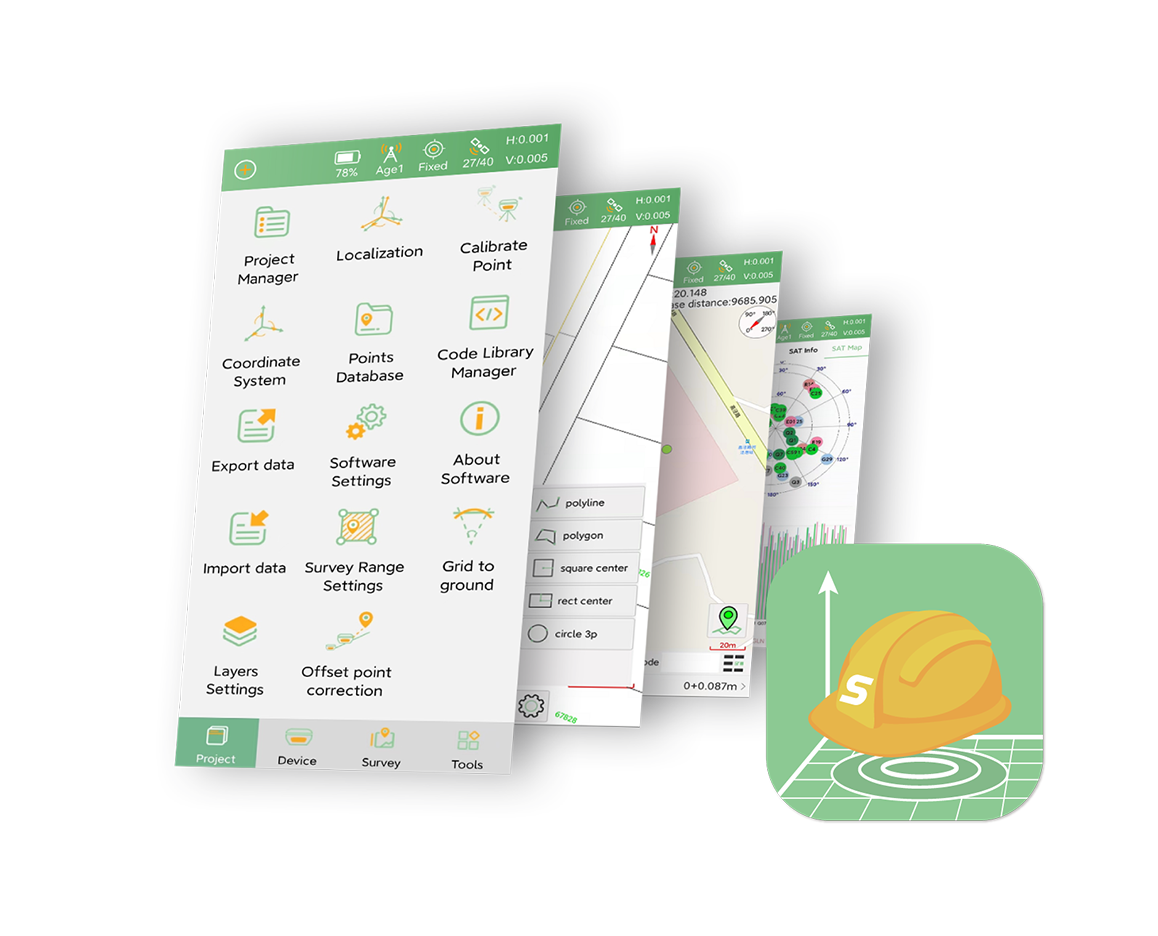

SingularPad Field Surveying Software
SingularPad Field Surveying Software
SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.
Industries & Applications
GIS
Specifications
Resources
SATELLITES TRACKING
Channels
1408
BDS
B1I, B2I, B3I, B1C, B2a, B2b*
GPS
L1C/A, L2C, L2P, L5
GLONASS
G1, G2
Galileo
E1, E5a, E5b, E6*
SBAS
WAAS, EGNOS, SDCM, BDSBAS, GAGAN
PPP
Available with enhanced version
RTK Accuracy
8mm+1ppm Horizontally
15mm+1ppm Vertically
GENERAL
CPU
Qualcomm Octa-core CPU, 1.8 GHz
OS
Android 10.0 GMS
Storage
4 GB RAM + 64 GB ROM
LCD Display
6ˮ IPS LCD, 500nits sunlight readable, capacitive multi-touch
Resolution
1440×720 pixel
Battery
5000mAh Lithiumion battery, 12 hours of operation
Size
81.6mm ×162mm × 13mm
