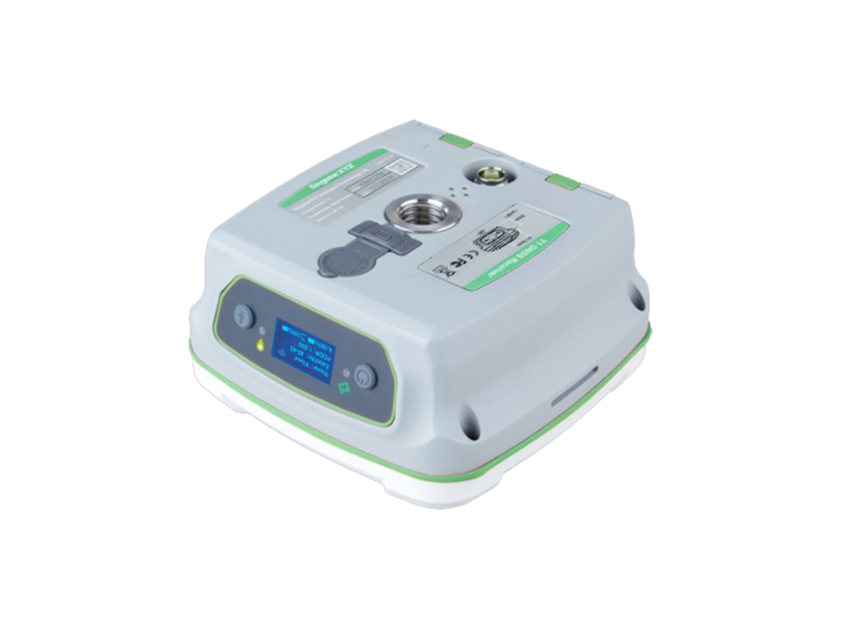

Y1
GNSS RECEIVER

Powerful, Versatile, Compact, Cost-effective

Become a Dealer

Home

Products

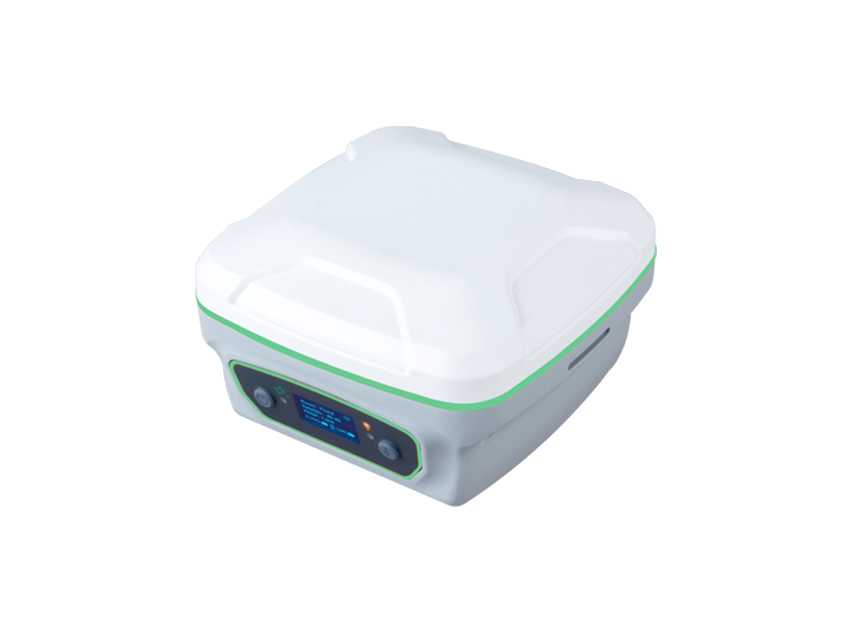

Y1
GNSS RECEIVER

Full-Constellation Tracking

Featuring 1598 channels for full constellation tracking, Y1 can deliver reliable centimeter-level accuracy positioning. Benefiting from the strong signal tracking and advanced RTK algorithm, Y1 shows stable & high fixed rate even in harsh environments.

Flexible Communication

Integrated with 4G/UHF/WiFi/Bluetooth/USB/serial port, you can flexibly select the way you need for communication. The enhanced UHF can achieve up to 15km working range with 2W power, reducing your burden without the need of external radio.

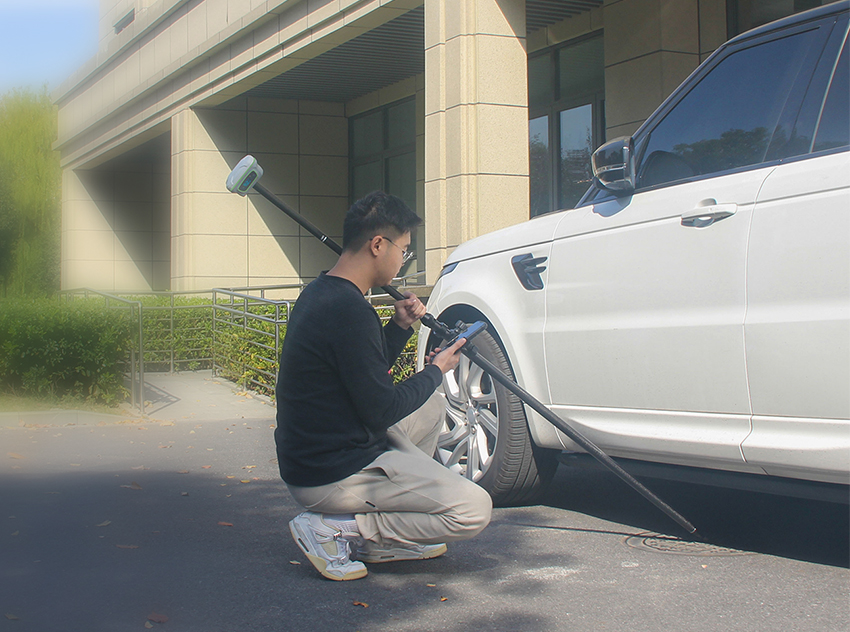

60° Tilt IMU

The built-in IMU module supports up to 60° tilt surveying while keeping the accuracy within ±2.5cm.

Full-Constellation

Flexible Communication

60° Tilt IMU

Full-Constellation Tracking

Flexible Communication

60° Tilt IMU

The built-in IMU module supports up to 60° tilt surveying while keeping the accuracy within ±2.5cm.

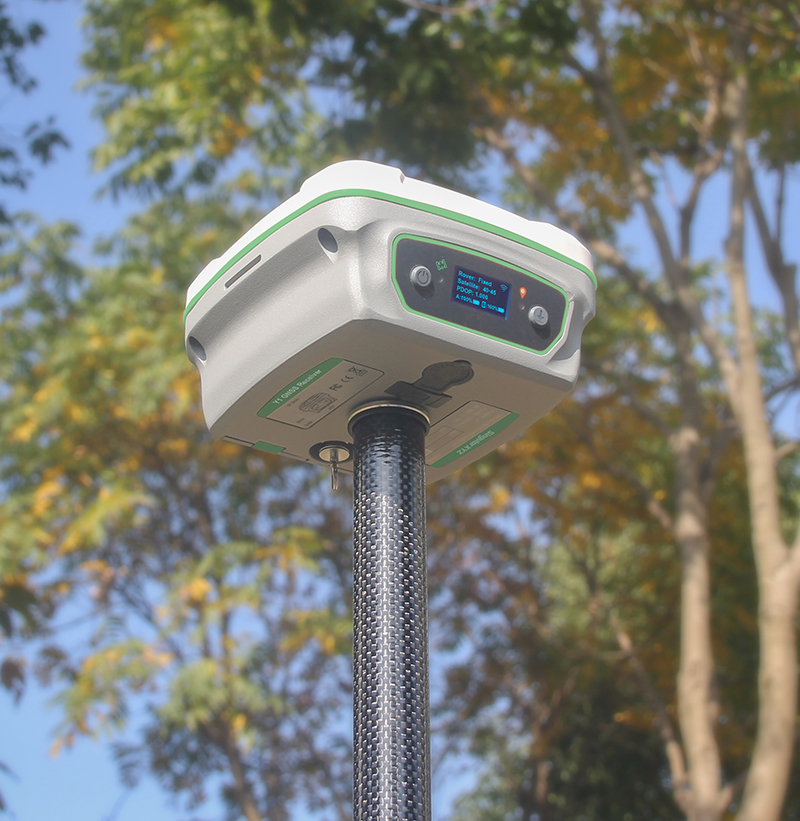

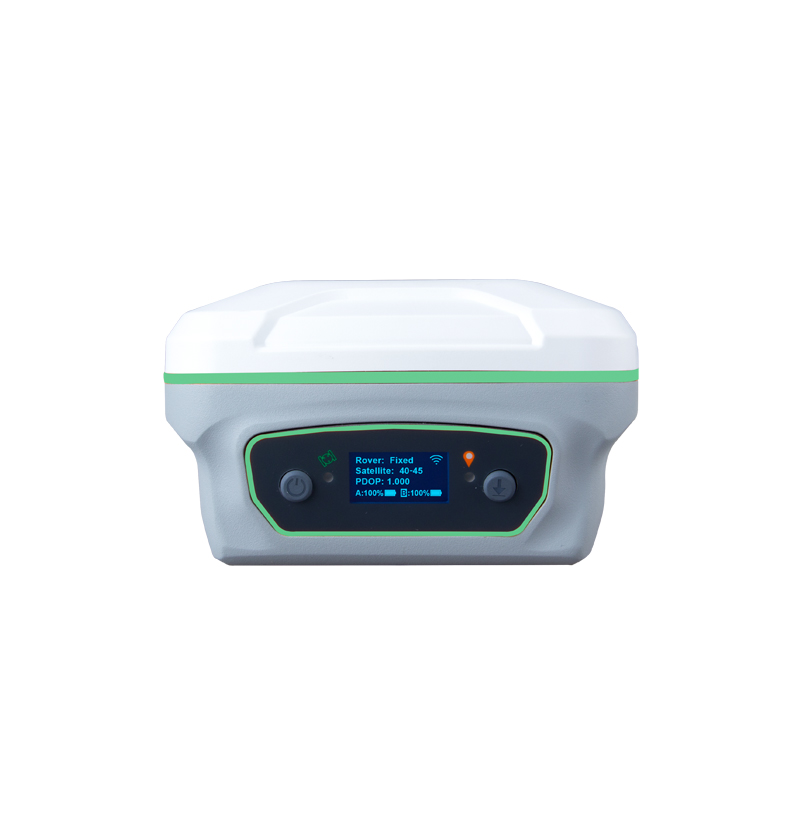

OLED & Web UI

Through the OLED display, functional buttons and indicators, you can directly perform status checking and configuration of Y1. Meanwhile, users also can easily configure work modes, download data, upgrade firmware and check device status via web UI after WiFi connection.

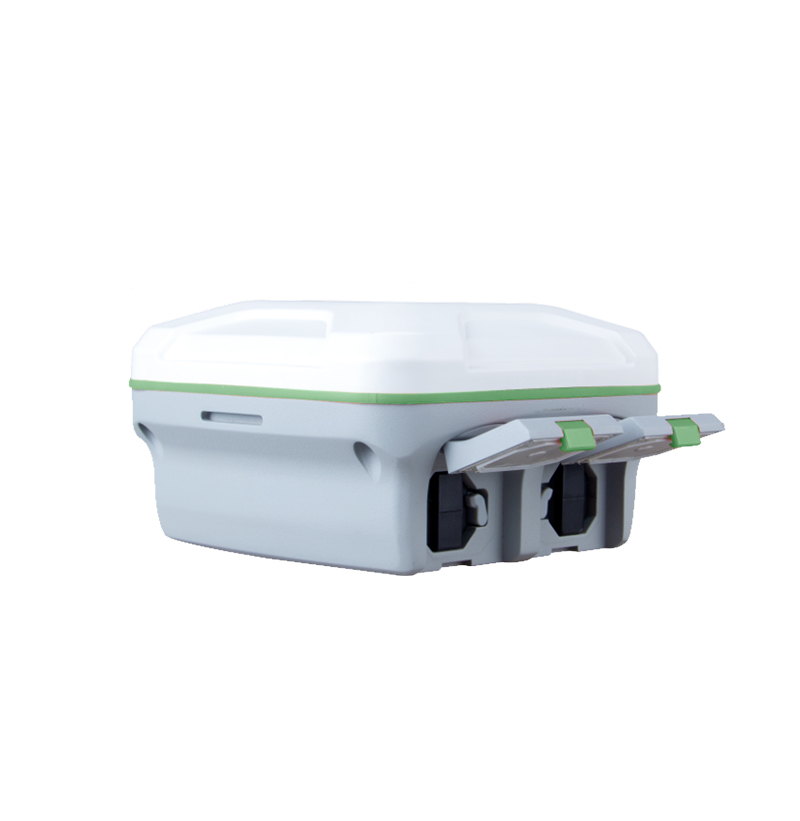

6600mAh Batteries

Hot swap batteries with 6600mAh large capacity support more than 12hrs working time and less than 3hrs charging time.

Rugged Housing

With IP67 waterproof & dustproof design and magnesium-aluminum alloy housing, Y1 is not afraid of harsh working environments.

Software & Platform

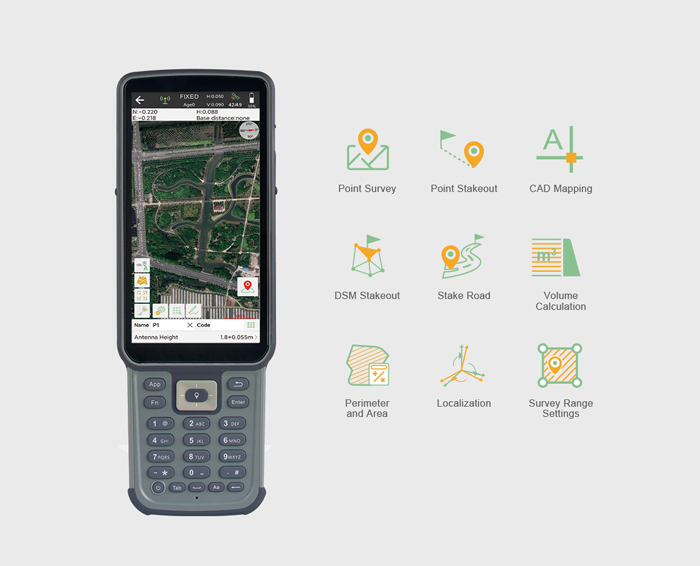

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

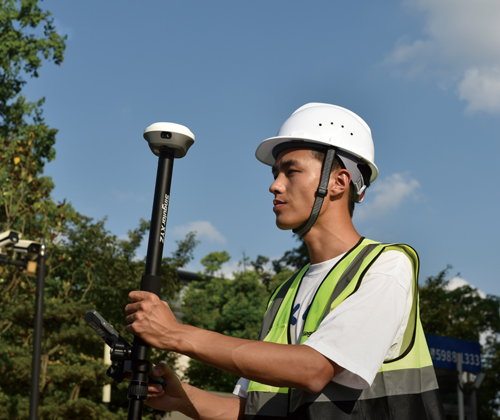

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1598

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L2P, L2C, L5, L1C

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6, E5 AltBoc

QZSS

L1C, L2, L5, L1C/A

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

COMMUNICATION

4G modem

Support

UHF modem

Up to 15km with optimal conditions

Bluetooth

BT4.0

NFC

Support

WiFi

IEEE 802.11 a/b/g/n 2.4G 5G

Interface

-1 7-pin lemo port for RS232
-1 SIM card slot for 4G
-1 TNC connector for UHF antenna

GENERAL

WebUI

Accessible via Wi-Fi

Battery

2×3300mAh, more than 12 hours working time

Size

12.3 × 12.3 × 7.0cm

Weight

834 g, with batteries inside

Waterproof & Dustproof

IP67
