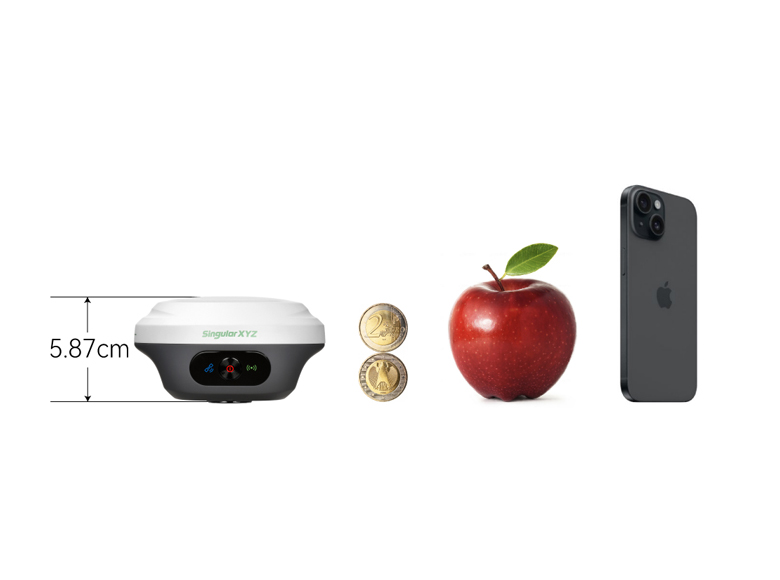

Mini in Hand, Mighty in Survey

Orion ONE-AR is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

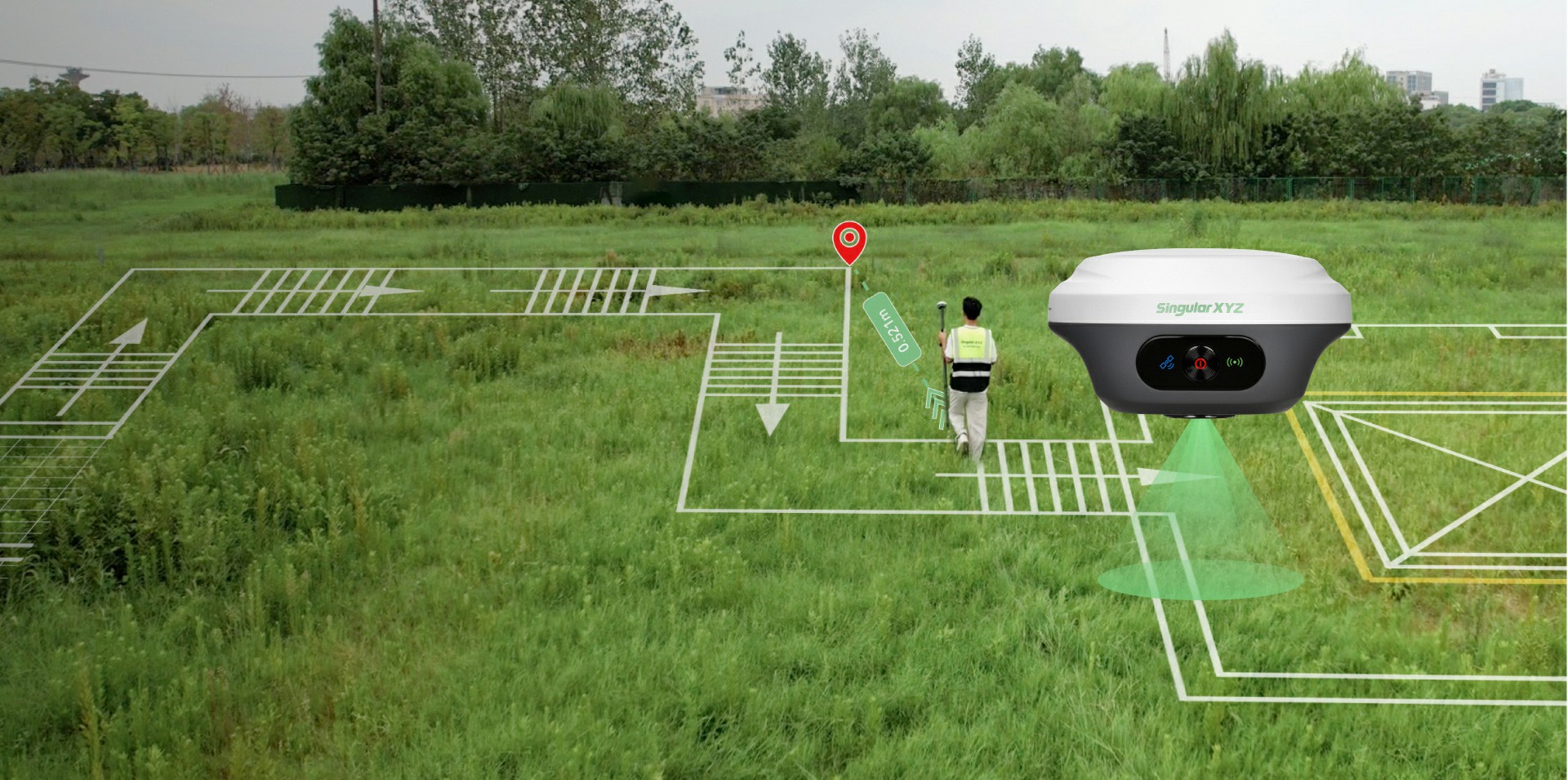

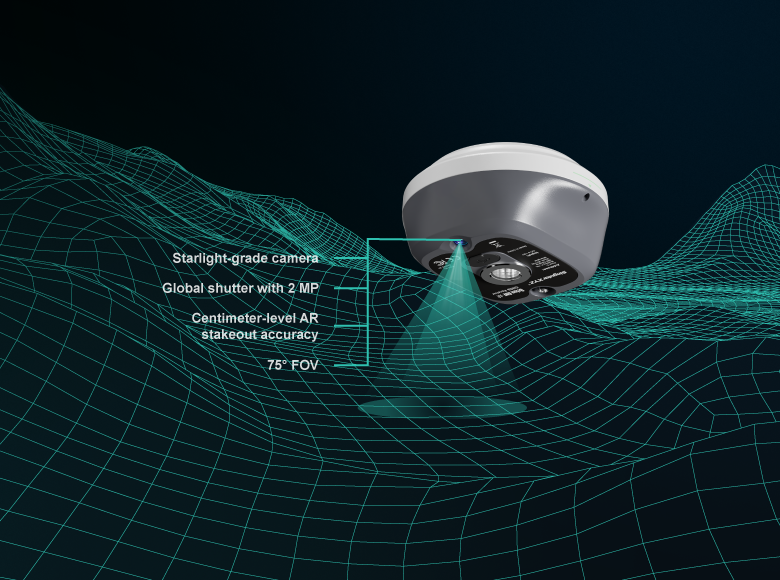

Visual Stakeout with Camera

Orion ONE-AR's 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

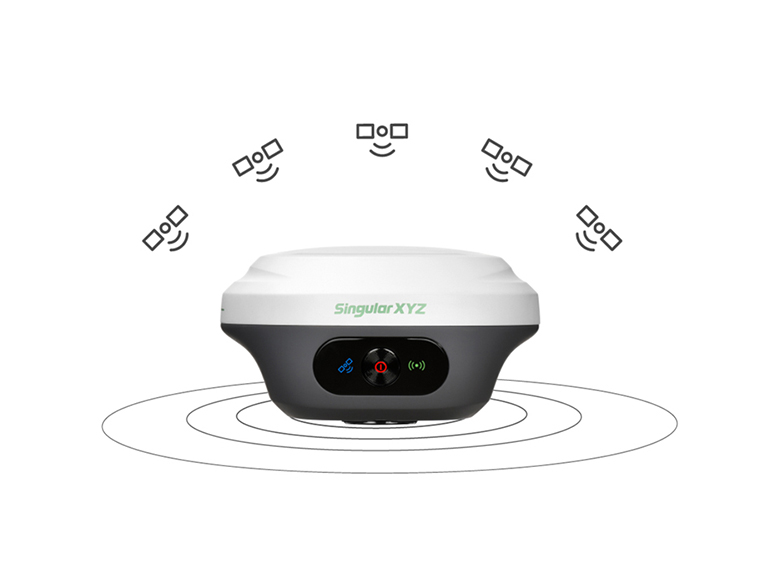

Full-Constellation Tracking

Orion ONE-AR supports full-constellation signal tracking with advanced anti-interference algorithms, ensuring fast and reliable FIX even in complex environments such as city canyons or dense forests.

Mini in Hand

Camera AR Stakeout

Full-Constellation

Mini in Hand, Mighty in Survey

Orion ONE-AR is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

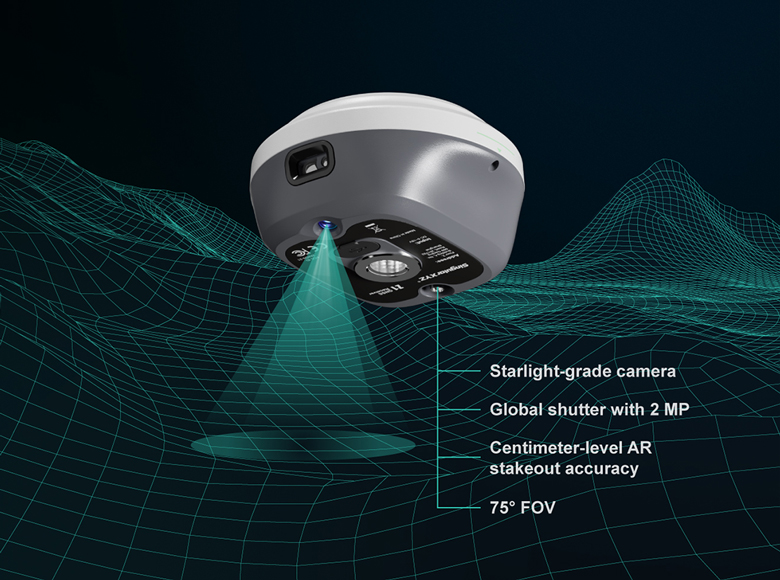

Visual Stakeout with Camera

Orion ONE-AR's 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

Full-Constellation Tracking

Orion ONE-AR supports full-constellation signal tracking with advanced anti-interference algorithms, ensuring fast and reliable FIX even in complex environments such as city canyons or dense forests.

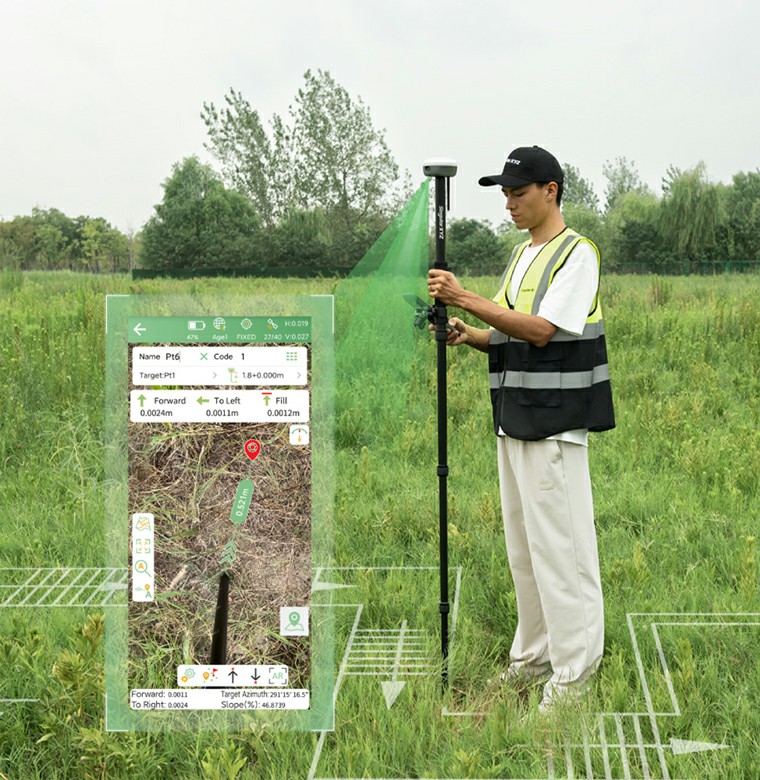

Immersive AR Experience 50% Higher Efficiency

Orion ONE-AR's visual AR stakeout allows surveyors to locate stakeout points directly in the real world, improving accuracy by over 50% compared to traditional methods—no prior experience needed.

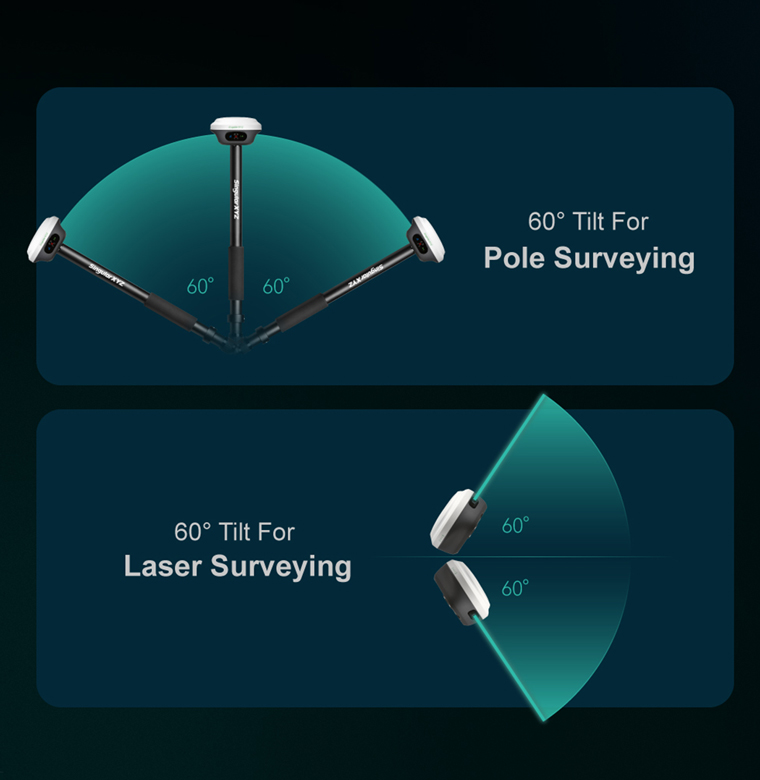

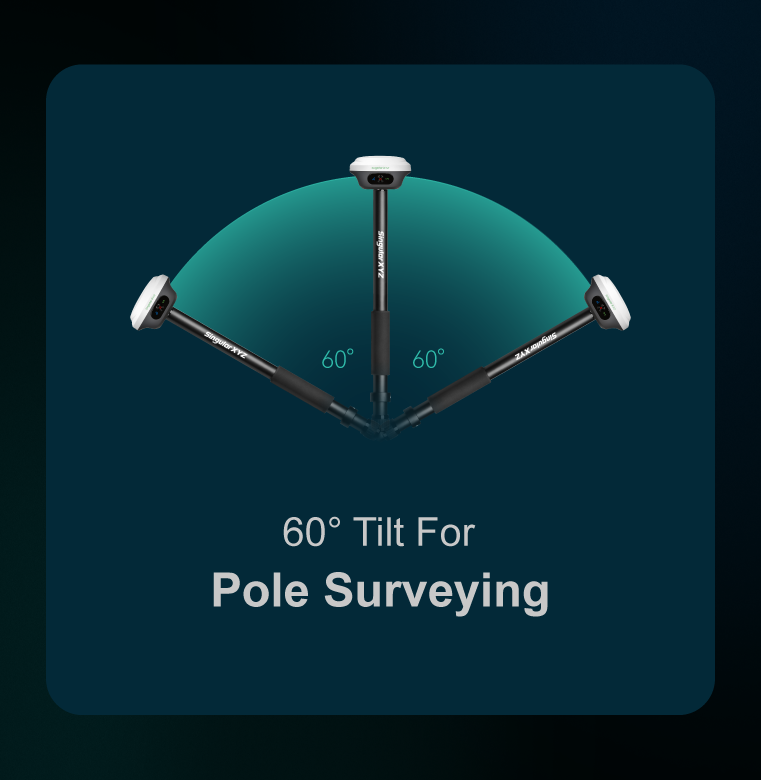

60° Tilt Surveying

With a high-performance IMU, Orion ONE-AR supports up to 60° tilt range for both pole surveying and AR visual stakeout, greatly increasing working efficiency and possibility.

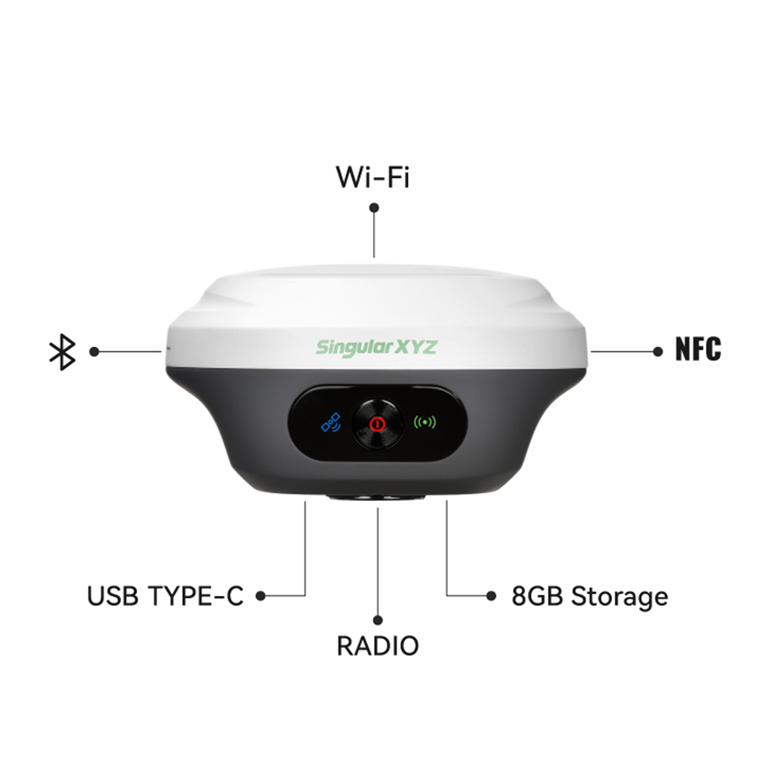

Versatile Transmission

With integrated NFC, Bluetooth, WiFi, USB Type-C and 8GB onboard storage, Orion ONE-AR offers versatile connectivity options, making data transfer and device management effortless.

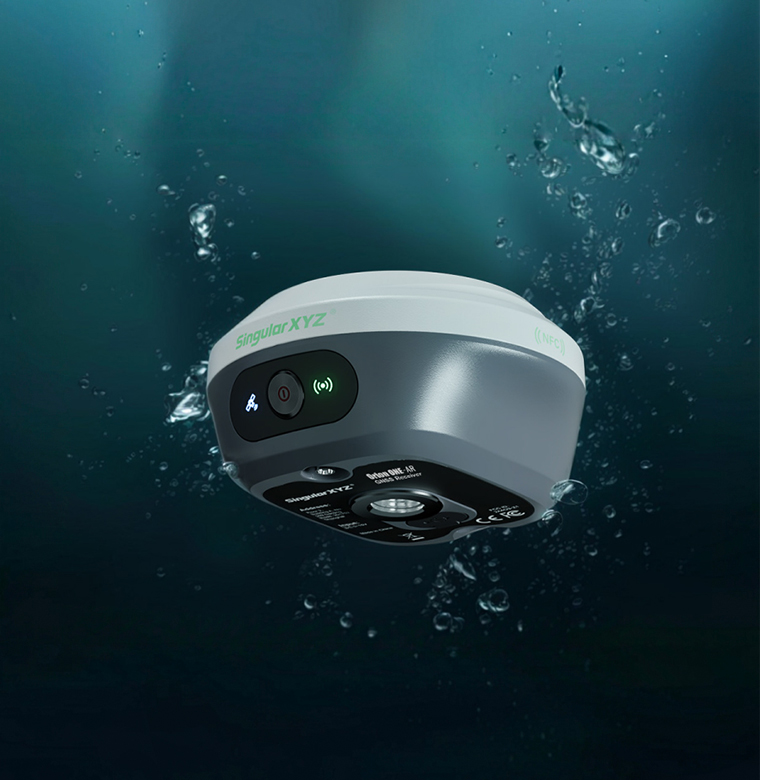

IP67 Rugged Protection

Built to withstand harsh environments, the IP67-rated casing of Orion ONE-AR provides protection against water, dust, and accidental drops, ensuring uninterrupted performance in the field.

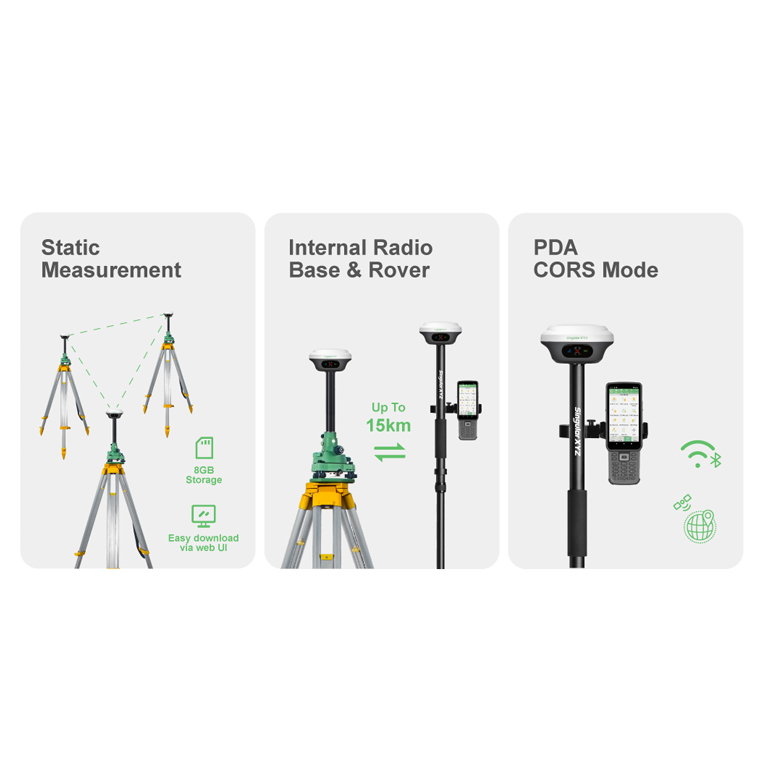

Flexible Work Modes

- Static Measurement: Record static with 8GB storage, downloadable via web UI.

- Internal Radio Mode: Achieve up to 15km range with the built-in UHF radio.

- PDA CORS Mode: Connect through Bluetooth, easily access to local CORS via PDAs.

Software & Platform

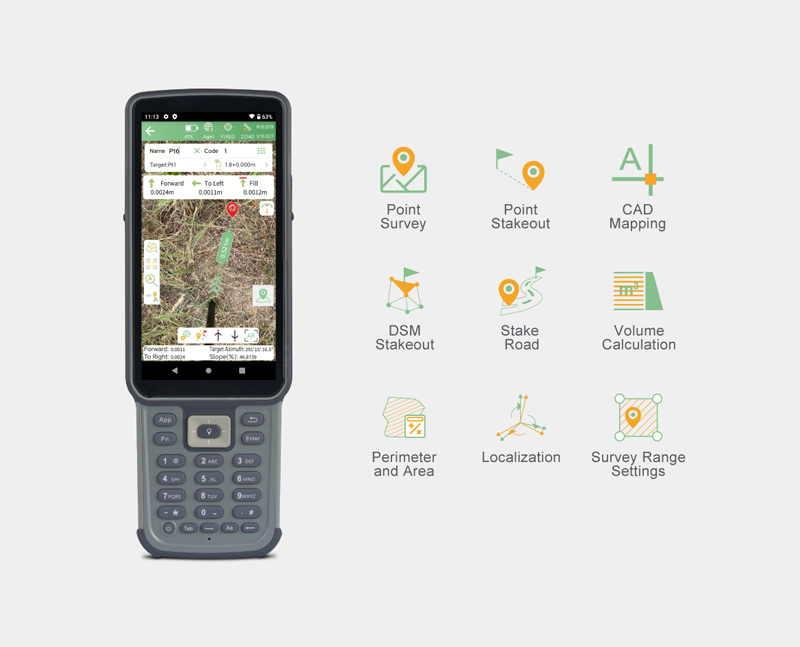

SingularPad Field Surveying Software

SingularPad, an Android-based professional field software, is designed to meet diverse surveying needs. Paired with the innovative Orion ONE Series, it's enhanced with Wi-Fi data interaction, visual stakeout, and laser survey capabilities.

Industries & Applications

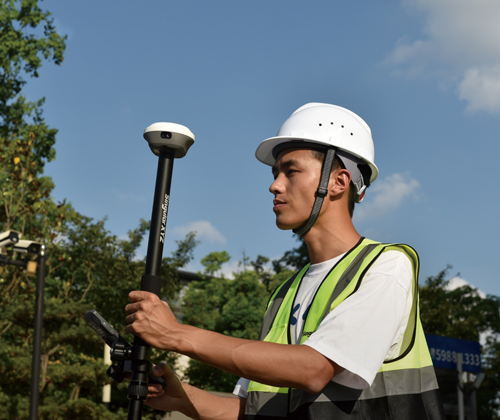

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

GENERAL

WebUI

Accessible via Wi-Fi

Battery

- 4200 mAh, up to 12 Hours Working Time
- Fast Charge of 3 Hours Charging Time

Size

Φ107 mm × 58.7 mm

Weight

547 g

Waterproof & Dustproof

IP67

VISUAL SENSOR

Sensor Type

Camera

Pixel

Global Shutter with 2 MP

Feature

Starlight-grade Camera, HD Capture in Weak Light Environment

AR Stakeout

8mm+1ppm Horizontally
15mm+1ppm Vertically

COMMUNICATION

UHF Modem

Up to 15km with optimal conditions

Bluetooth

BT4.0 Dual Mode

WiFi

802.11 a/b/g/n/ac

Interface

Type-C Interface for Data Transmission and Charging
