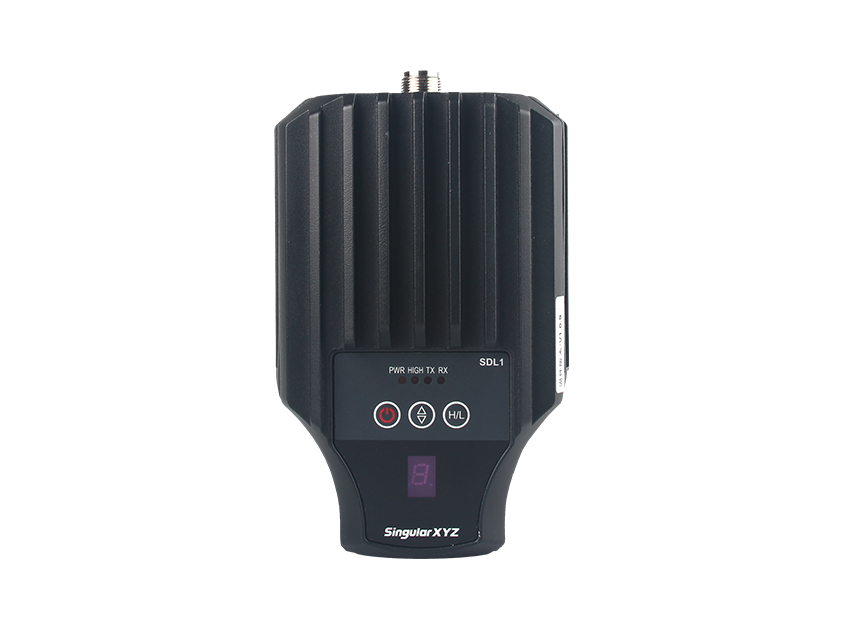

SDL1
EXTERNAL DATALINK
Reliable, Real-Time, Long Range
Become a Dealer
Home Products SDL1

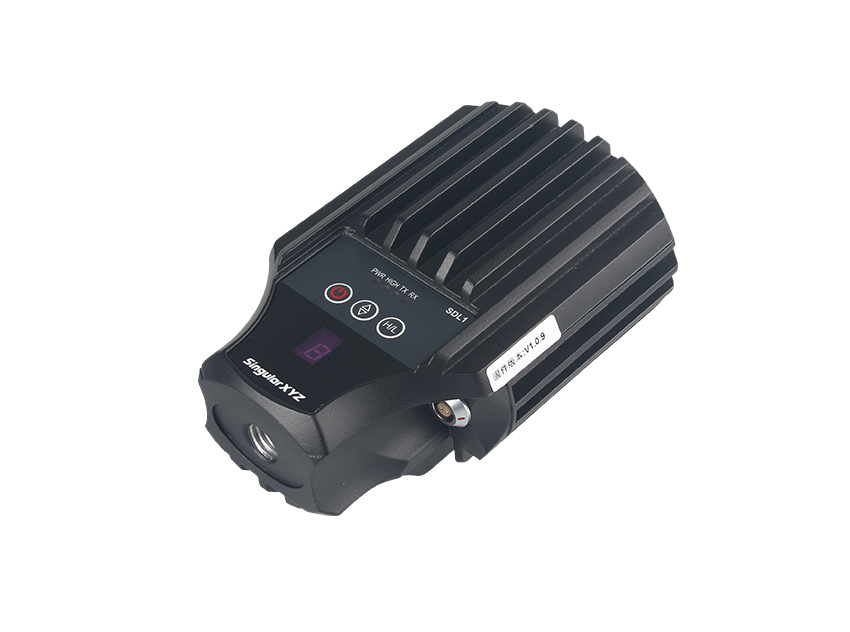

EXTERNAL DATALINK
Long Working Range
Adopted with LoRa (Long Range) protocol and 25W high power, the SDL1 external datalink achieves up to 25km working range in ideal environments. The ultra-long working range greatly saves the time and cost of users.
Simple To Use
The air baud rate of SDL1 is adjustable, which can reach 18000bps to transmit GNSS correction data of full-constellation at the same time. Furthermore, with stable output power, multiple channels and easy configuration buttons, SDL1 shows superior functionality.
Durable Design
With IP67 protection and anti-vibration design, SDL1 is not afraid of harsh environments. The unique heat sink design ensures the continuous operation without damage. In addition, anti-reverse power supply protection and high/low voltage warning make SDL1 ultra-durable.
Long Working Range
Simple To Use
Durable Design
Long Working Range
Adopted with LoRa (Long Range) protocol and 25W high power, the SDL1 external datalink achieves up to 25km working range in ideal environments. The ultra-long working range greatly saves the time and cost of users.
Simple To Use
The air baud rate of SDL1 is adjustable, which can reach 18000bps to transmit GNSS correction data of full-constellation at the same time. Furthermore, with stable output power, multiple channels and easy configuration buttons, SDL1 shows superior functionality.
Durable Design
With IP67 protection and anti-vibration design, SDL1 is not afraid of harsh environments. The unique heat sink design ensures the continuous operation without damage. In addition, anti-reverse power supply protection and high/low voltage warning make SDL1 ultra-durable.
Industries & Applications
Land Surveying
Specifications
Resources
GENERAL
Size
110×180×93mm
Weight
1.3 kg
Waterproof & Dustproof
IP67

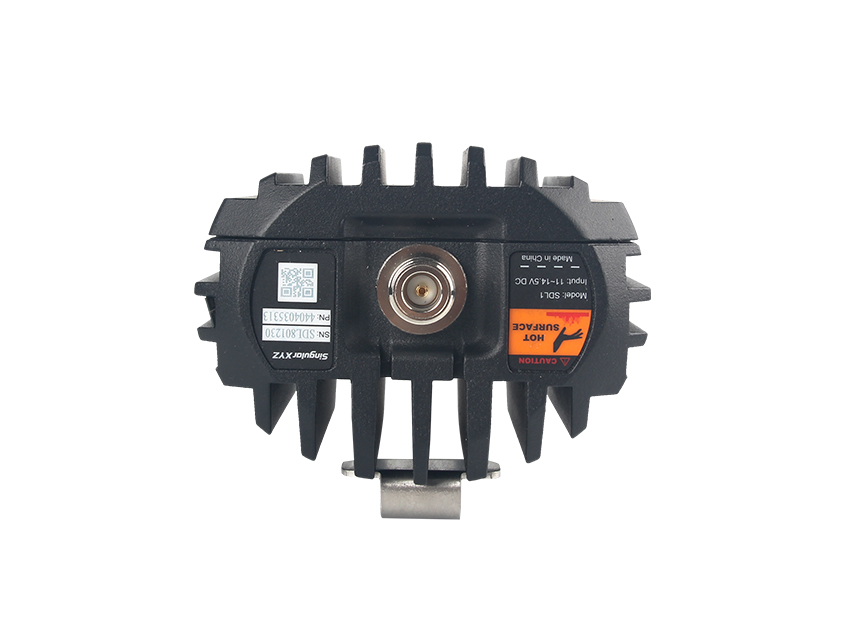

Antenna Interface
N-type
RF PERFORMANC
Frequency Range
410-470 MHz
Channel Spacing
250 kHz
Work Mode
Half-duplex
Frequency Stability
1.5ppm
Protocol Type
LoRa
SDL1 External Datalink
pdf
2025.06.04
793.57 KB
Download
