STS2
TOTAL STATION

Built for Accuracy, Ready for the Field

Become a Dealer

Home

Products

STS2
TOTAL STATION

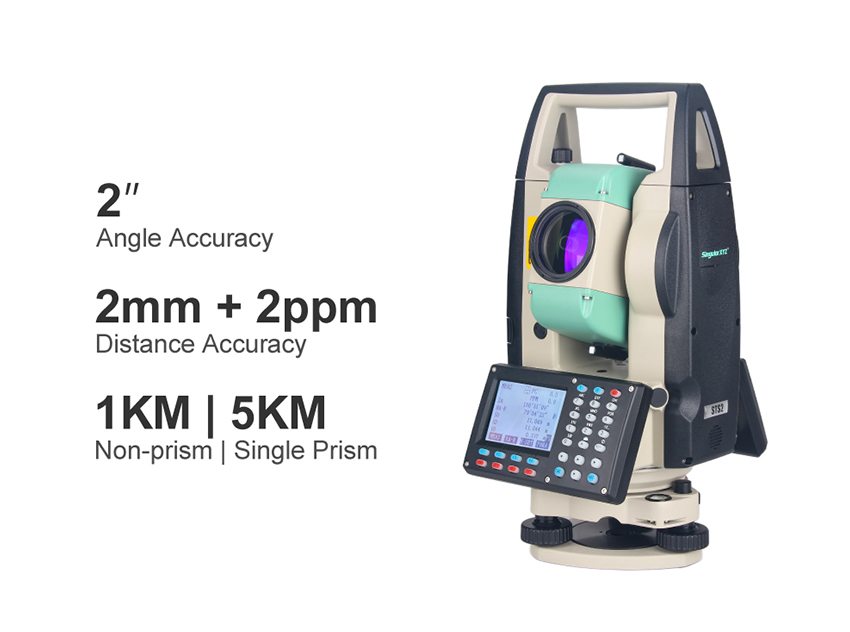

Precise Measurement

For angle measurement, the STS2 offers 2" accuracy. For distance, it delivers 3mm accuracy up to 1000m in reflectorless mode and 2mm accuracy up to 5000m with a single prism, ensuring precision in diverse surveying tasks.

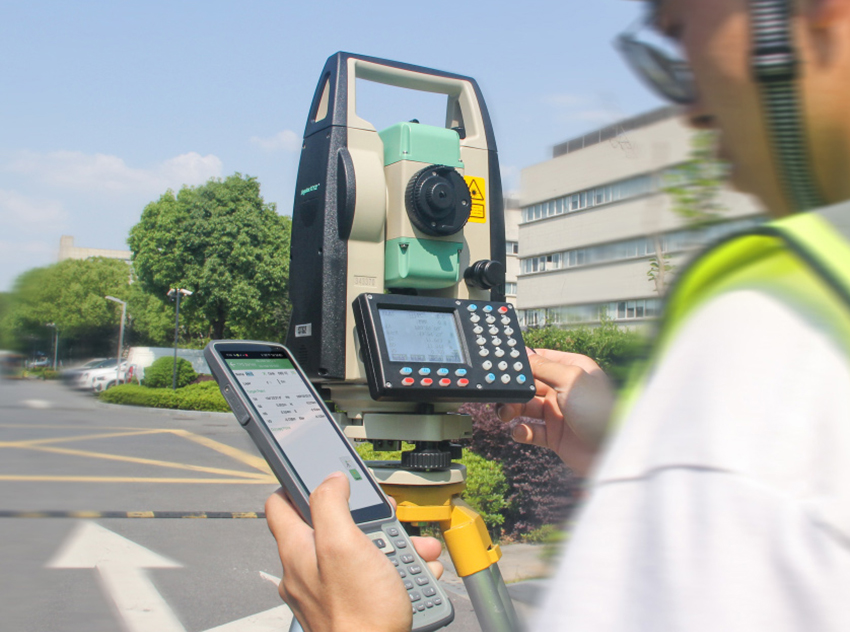

Optical+GNSS Work

Connected via Bluetooth, the STS2 can realize easy measurement and data storage in SingularPad surveying software. Both GNSS and optical survey tasks can be performed smoothly under the same project and datum.

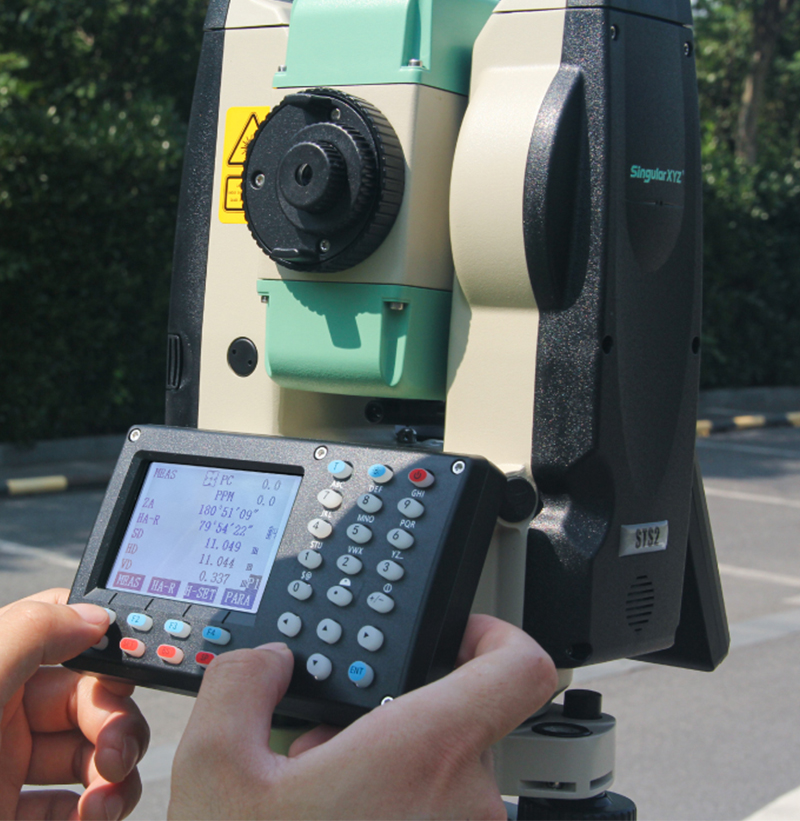

User-friendly Features

STS2 includes built-in bubble levels, laser plummet for centering, manual measure key, and dual control panels with illuminated keyboard—all designed for easy setup and streamlined operations.

Precise Measurement

Optical+GNSS Work

User-friendly Features

Precise Measurement

Optical+GNSS Work

User-friendly Features

STS2 includes built-in bubble levels, laser plummet for centering, manual measure key, and dual control panels with illuminated keyboard—all designed for easy setup and streamlined operations.

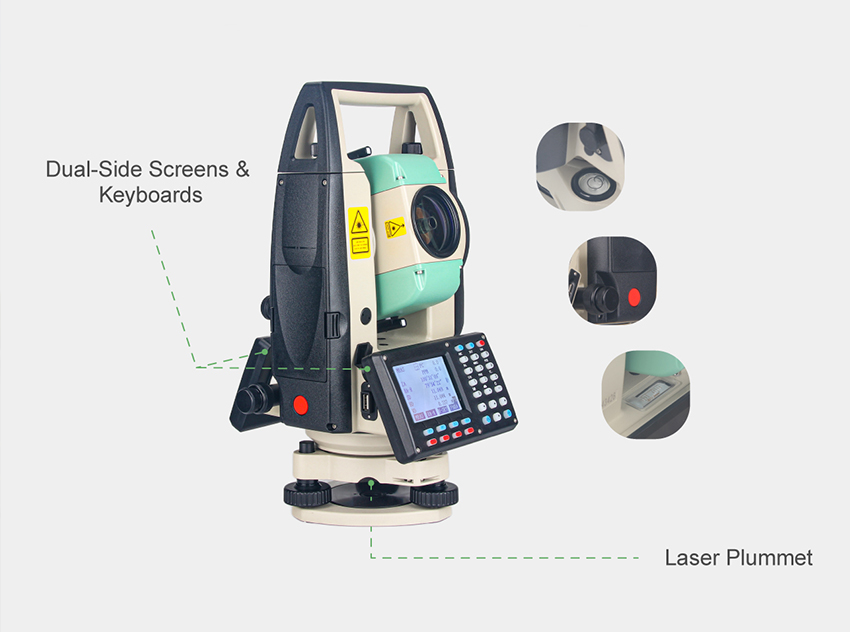

Dual-Side Operation

Equipped with dual-side screens and illuminated keyboards, the STS2 allows operators to easily switch sides for faster workflows and reduced repositioning during fieldwork, improving overall efficiency.

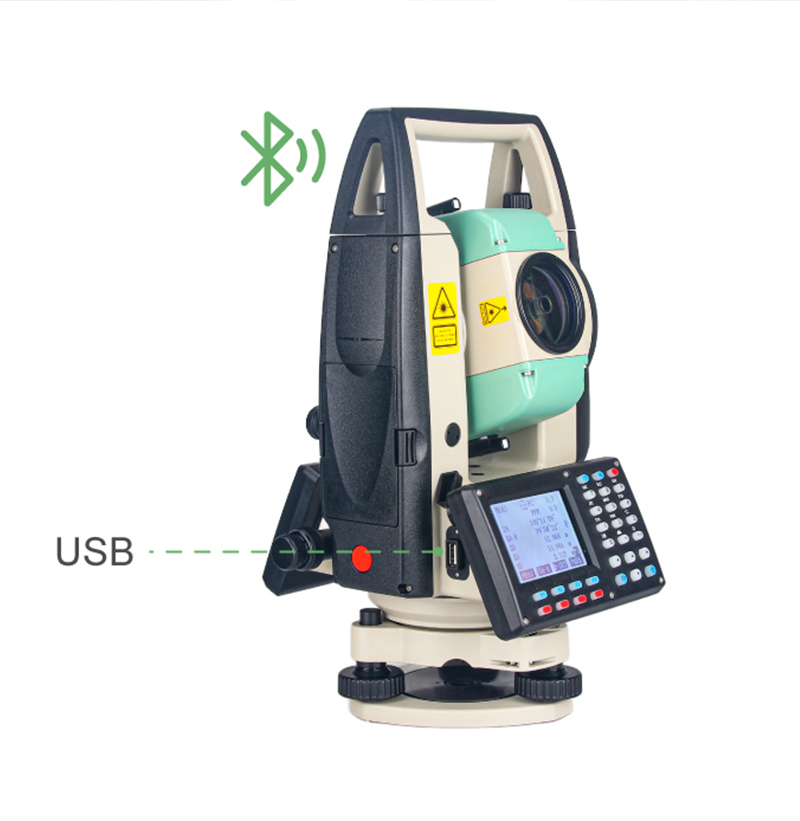

Flexible Connectivity

With 16,000 points internal memory, USB export, and software-side storage, the STS2 meets various data needs. Bluetooth ensures seamless connection with SingularPad for smooth data transfer.

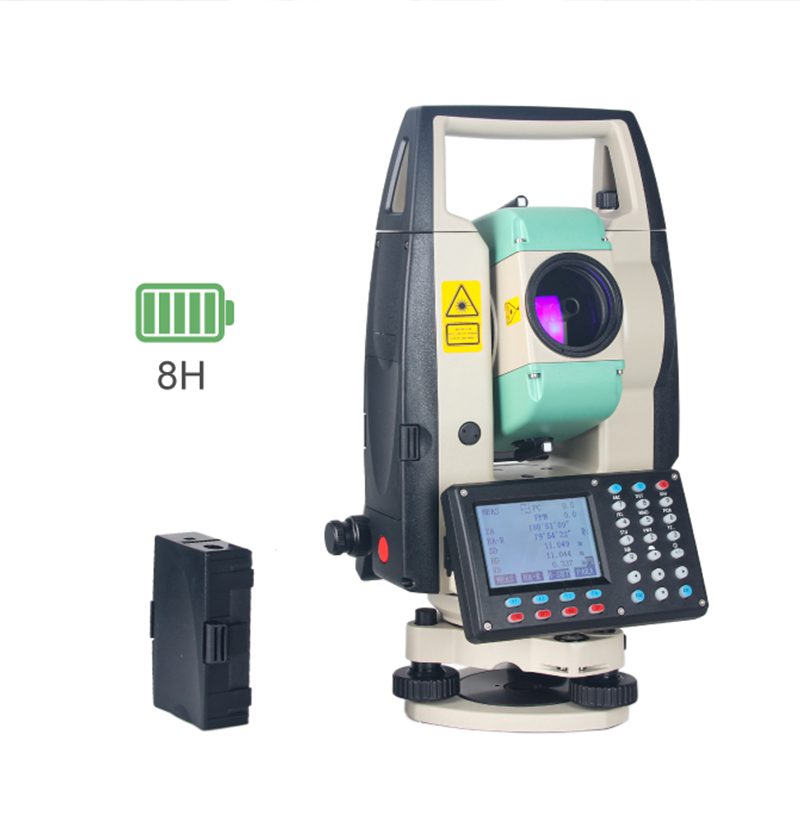

Long-Lasting Battery

Each battery supports up to 8 hours of continuous work. With an additional backup battery included, STS2 ensures reliable full-day operation by allowing quick battery replacement when needed.

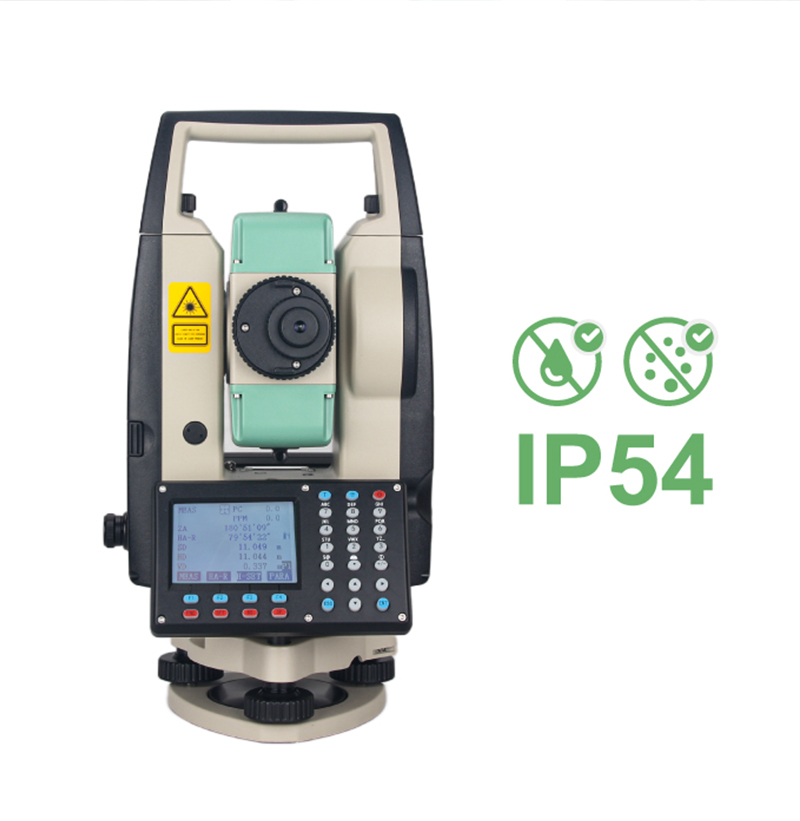

Durable Design

Designed for harsh conditions, the STS2 features IP54 dust and water protection and solid construction to withstand demanding environments and ensure consistent performance.

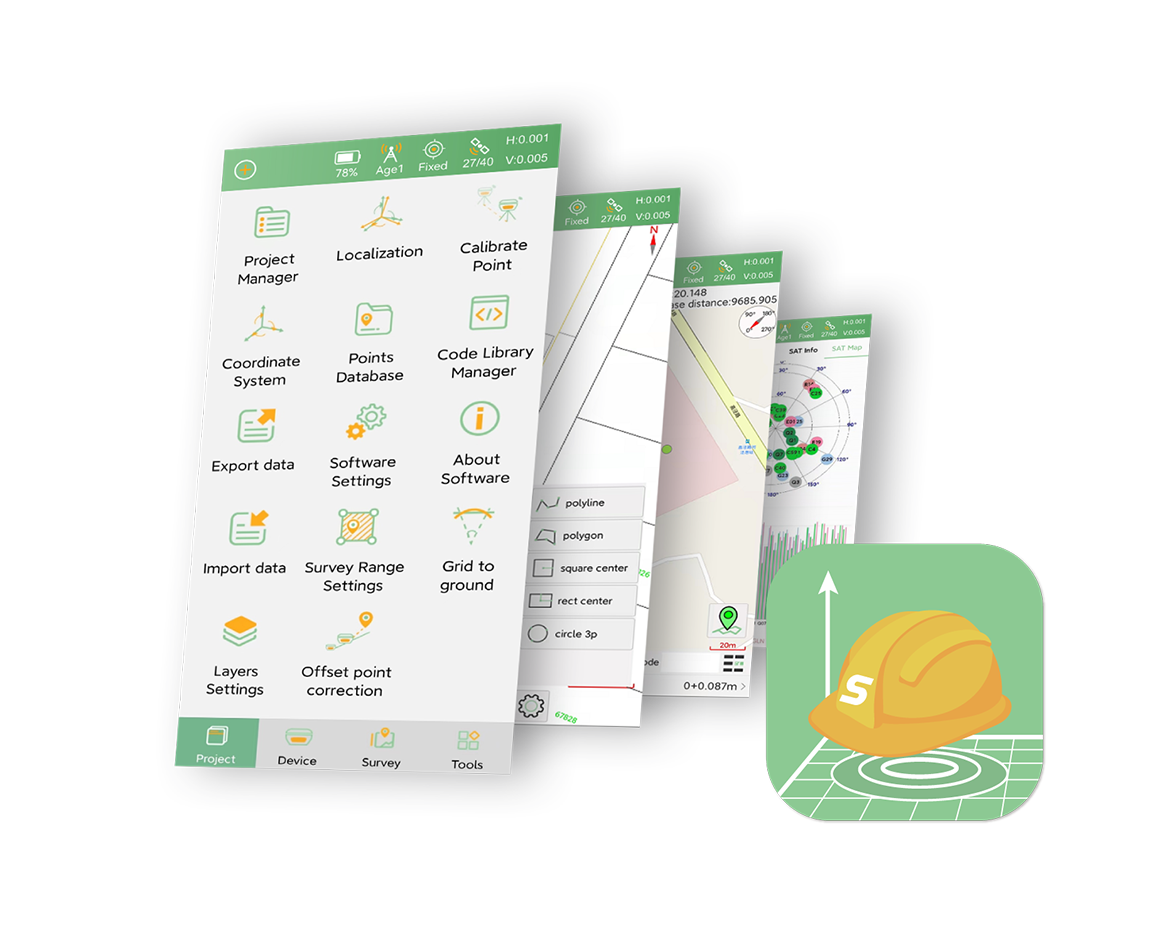

Software & Platform

SingularPad Field Surveying Software

Based on SingularPad field surveying software, the point survey, stakeout, CAD and other functions are all compatible with TS1000 total station, providing brand new experiences for total station users.

Industries & Applications

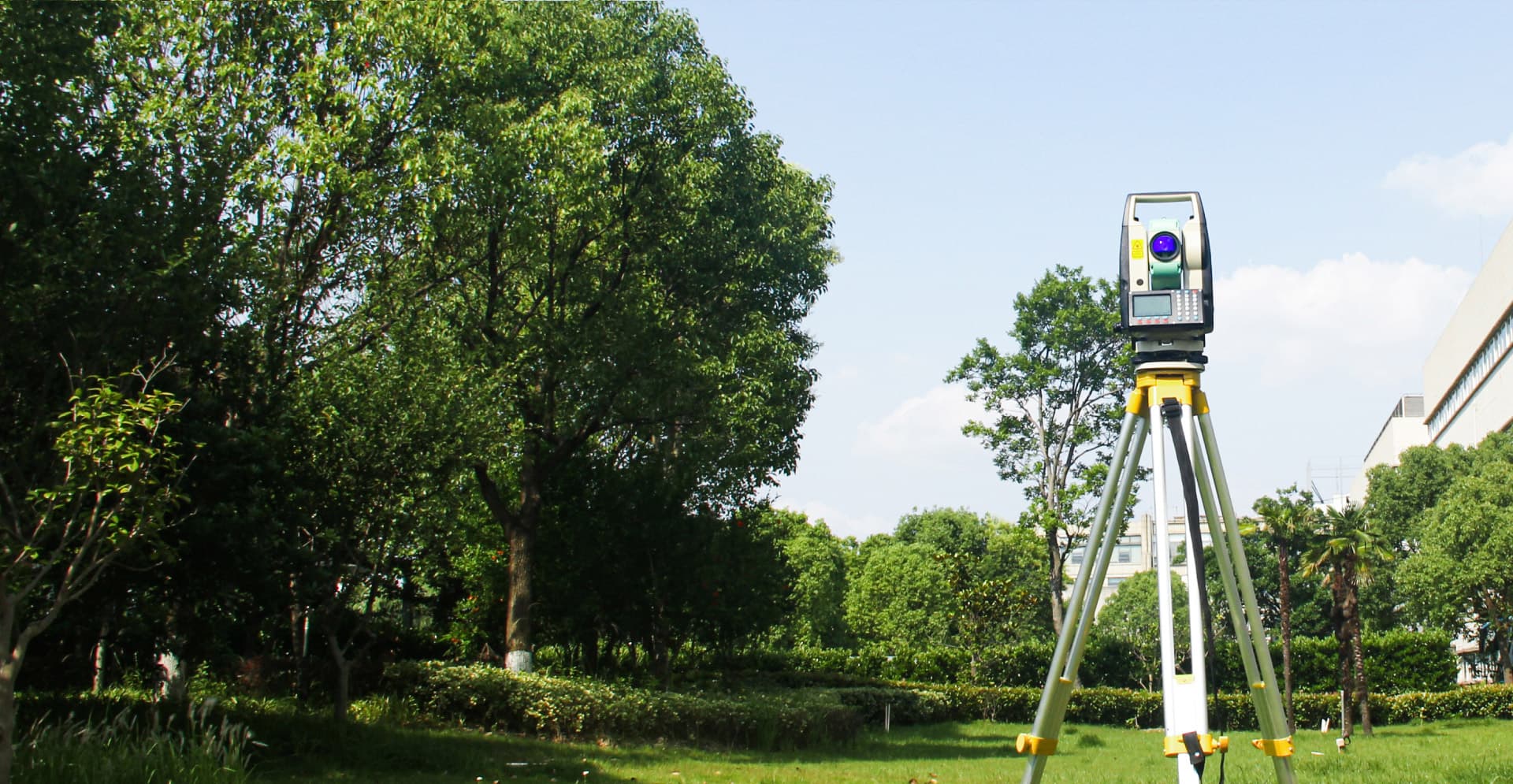

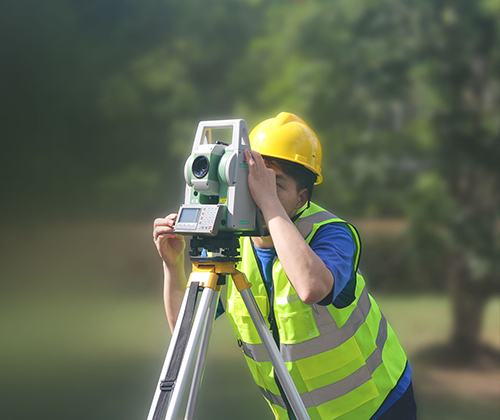

Surveying & Mapping

Specifications

Resources

MEASUREMENT

Distance Range

- Non-prism: 1000 m
- Single prism: 5000 m

Distance Accuracy

- 2 mm+2 ppm (reflector)
- 3 mm+2 ppm (reflectorless)

Angle Minimum Reading

Angle Accuracy

Telescope Magnification

30x

GENERAL

Display

2.7" dual-side LCD

Keyboard

Alphanumeric 29 Keys with backlight

Size

206mm × 200mm × 353mm

Weight

6.0 kg

Waterproof & dustproof

IP54

Plummet

Laser plummet
