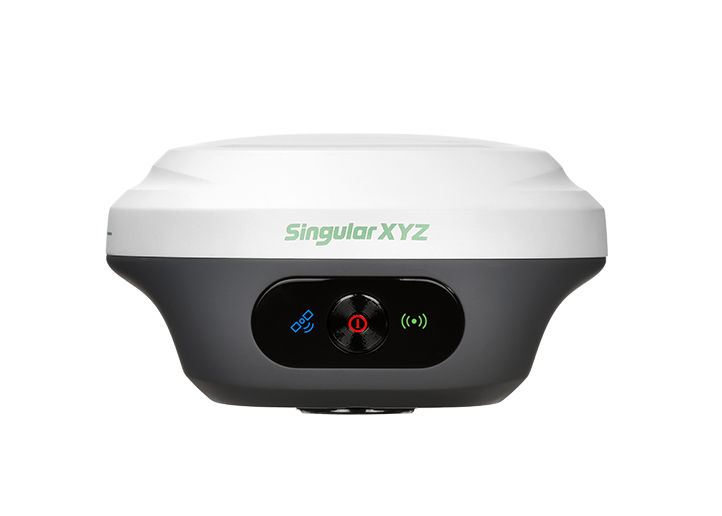

Z1 LITE
GNSS RECEIVER

Palm-Sized & Entry-Level RTK

Become a Dealer

Home

Products

Z1 LITE
GNSS RECEIVER

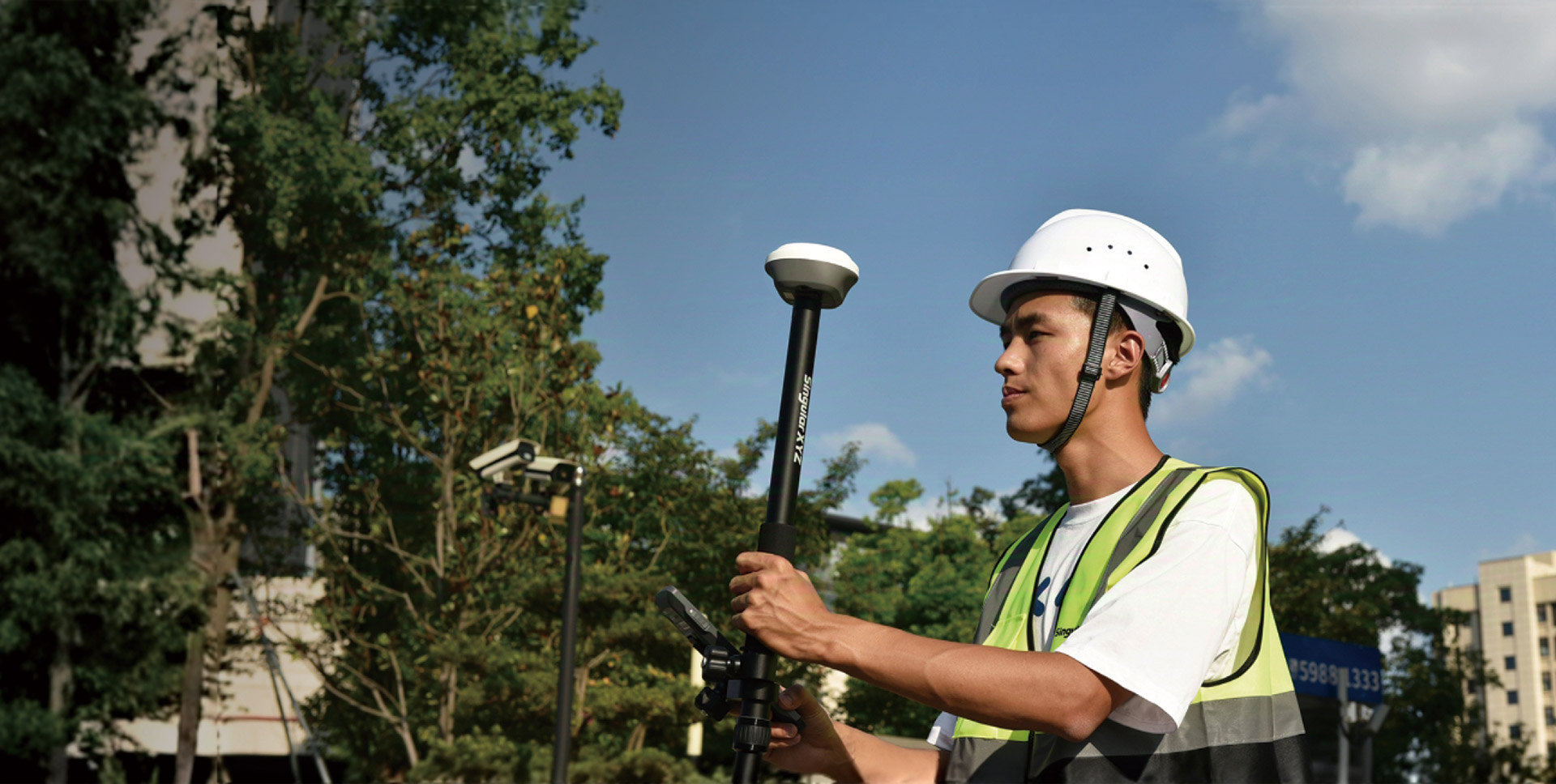

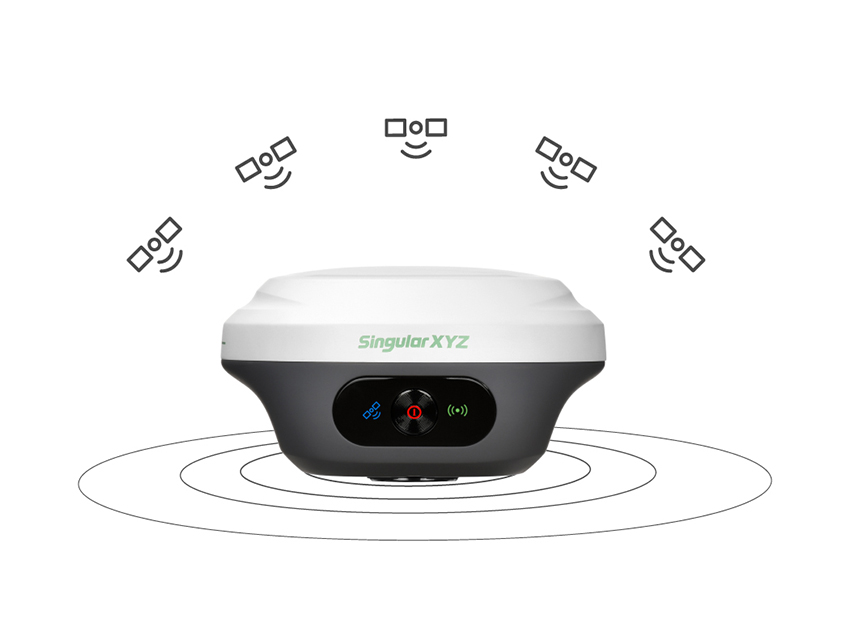

Full-Constellation, Fixed in Seconds

Full-constellation tough signal tracking, robust anti-interference and advanced RTK algorithm, Z1 Lite takes only a few seconds to get a stable fixed solution even in challenging environments like multipath, tree canopy, city canyons, etc.

Mini in Hand

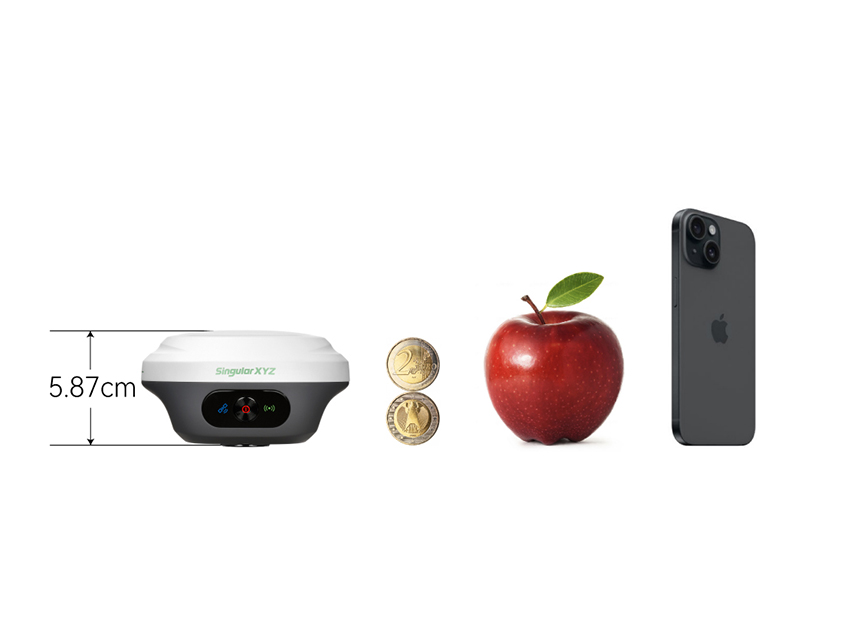

The Z1 Lite GNSS receiver is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

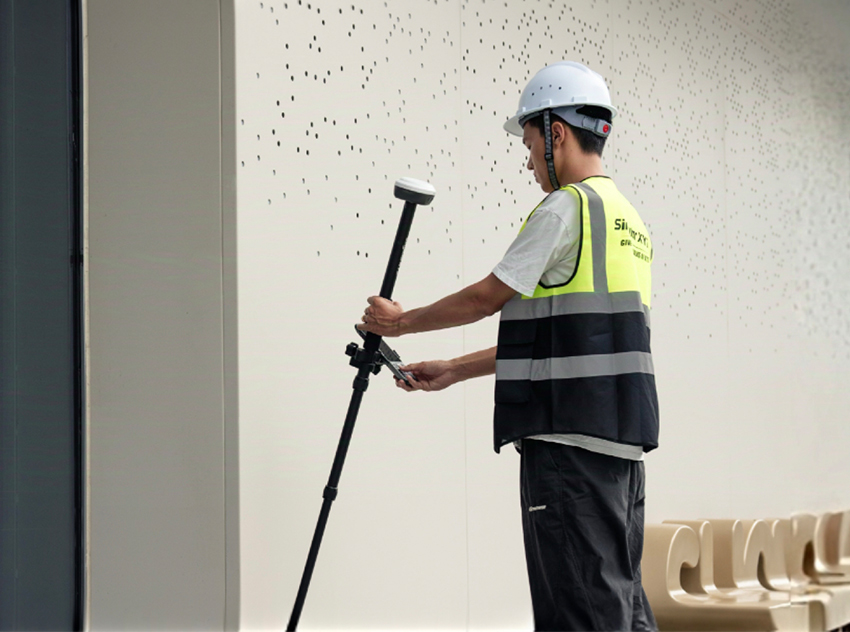

60° Tilt Surveying

Optimized with the built-in IMU module, you can easily initialize the IMU and start tilt measurements up to 60° range, delivering ±2.5cm accuracy for the whole work.

Full-Constellation

Mini in Hand

60° Tilt

Full-Constellation, Fixed in Seconds

Mini in Hand

The Z1 Lite GNSS receiver is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

60° Tilt Surveying

Optimized with the built-in IMU module, you can easily initialize the IMU and start tilt measurements up to 60° range, delivering ±2.5cm accuracy for the whole work.

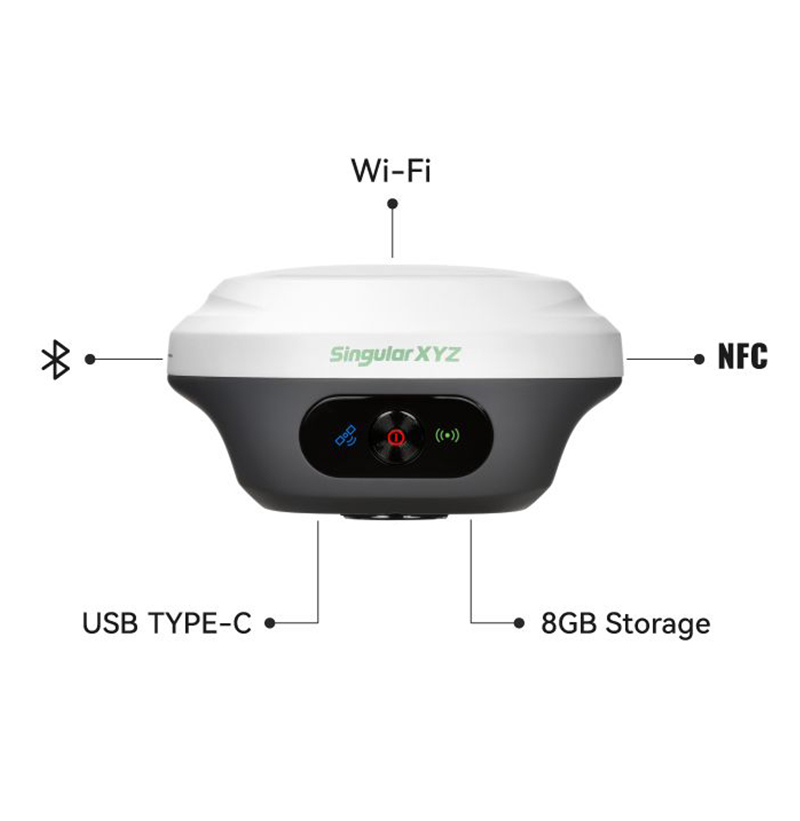

Versatile Transmission

With integrated NFC, Bluetooth, WiFi, USB Type-C and 8GB onboard storage, Z1 Lite offers versatile connectivity options, making data transfer and device management effortless.

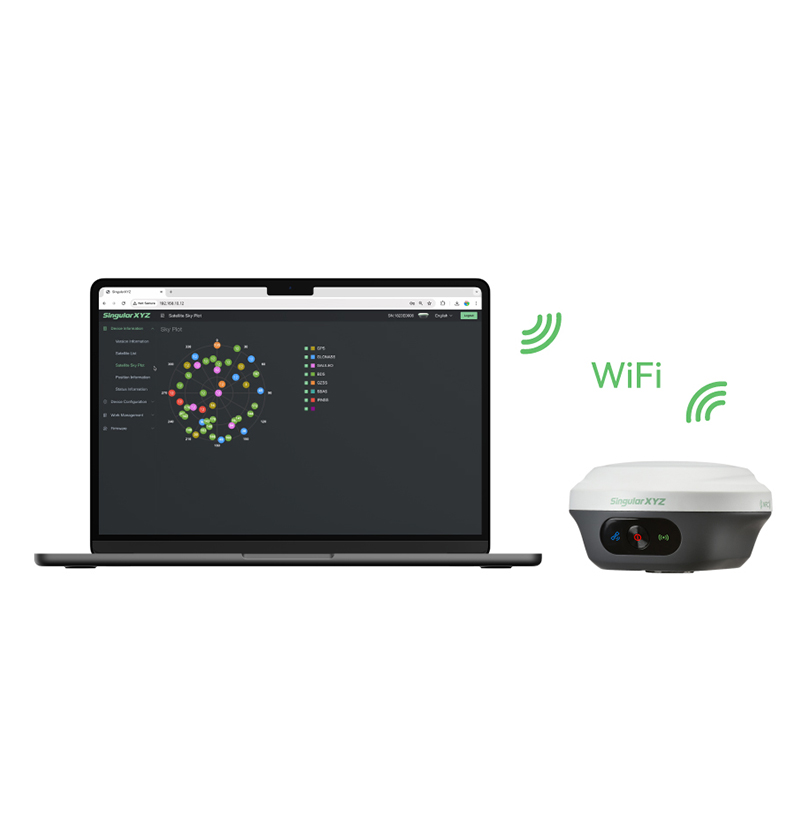

Easy Download via Web UI

Accessed via the WiFi of Z1 Lite GNSS receiver, you can easily login the web page for static data download, firmware upgrade, device status check and configuration.

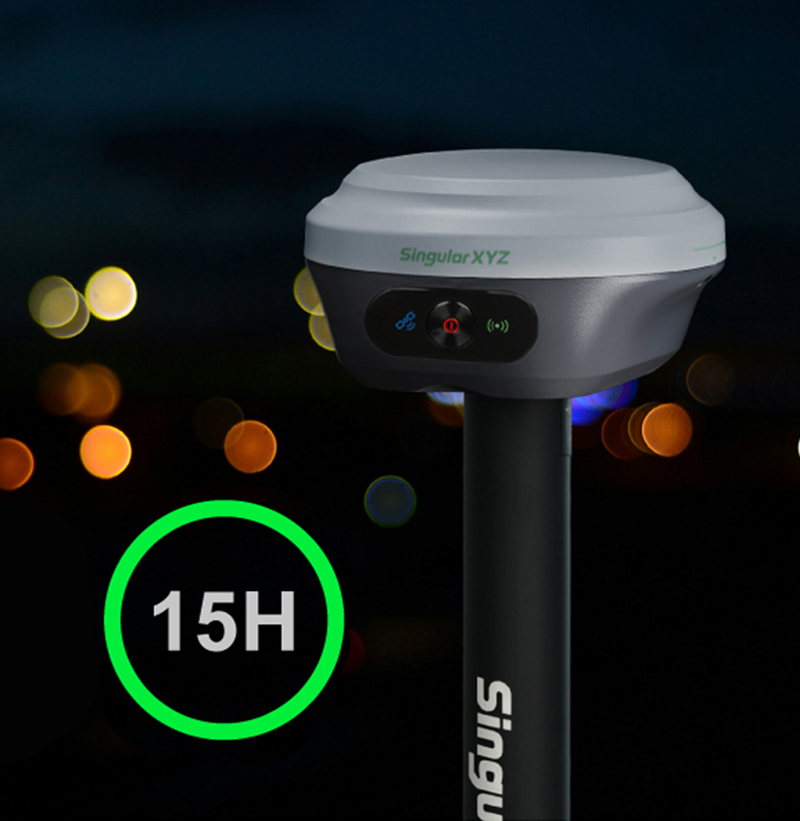

15Hrs Large Battery

Considering the continuity and consistency of outdoor work, Z1 Lite has minimized its size while also ensuring maximum battery life. The 15-hour battery life allows you to work uninterruptedly throughout the day.

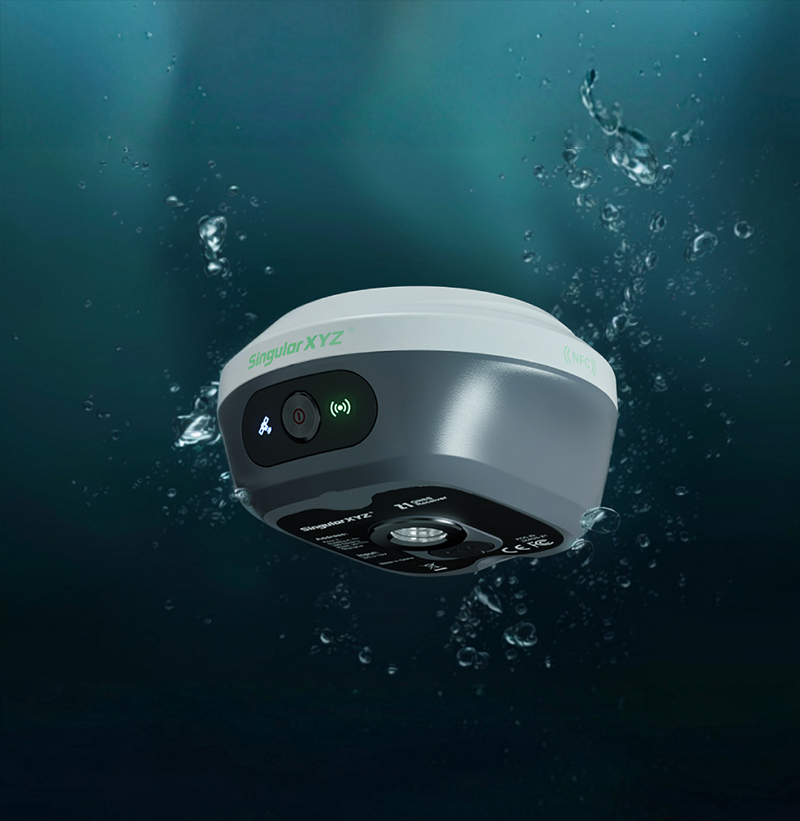

IP67 Rugged Protection

Built to withstand harsh environments, the IP67-rated casing of Z1 Lite provides protection against water, dust, and accidental drops, ensuring uninterrupted performance in the field.

Software & Platform

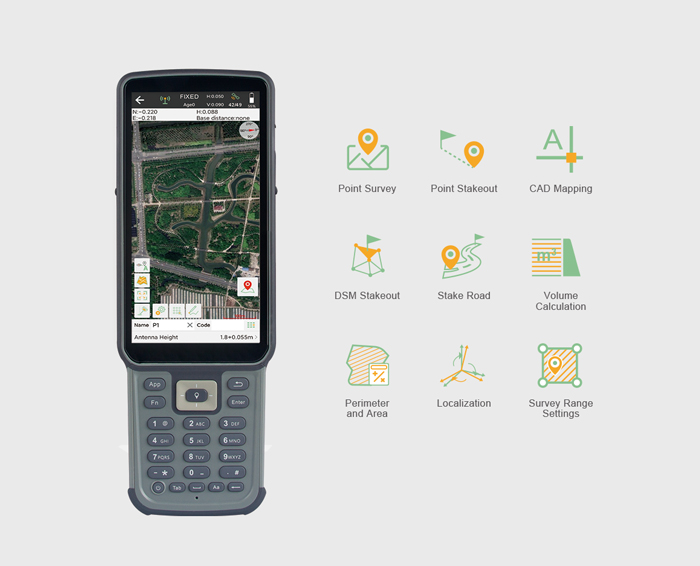

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

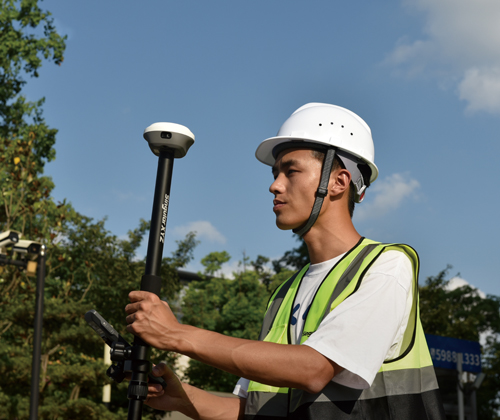

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

GENERAL

WebUI

Accessible via Wi-Fi

Battery

4200 mAh, up to 15 Hours Working Time

Size

Φ107 mm × 58.7 mm

Weight

547 g

Waterproof & Dustproof

IP67

COMMUNICATION

Bluetooth

BT4.0 dual mode

NFC

Support

WiFi

802.11 a/b/g/n/ac

Interface

- 1 Type-C Interface for Data Transmission and Charging
