SV200 INS
GNSS RECEIVER

Fusing GNSS and INS for Reliable Navigation

Become a Dealer

Home

Products

SV200 INS
GNSS RECEIVER

GNSS+INS Fusion

Combining full-constellation GNSS with advanced INS technology, the SV200 delivers reliable centimeter-level positioning, velocity, and attitude information, ensuring stable navigation in challenging environments.

Precise When Signals Loss

When satellite signals are obstructed or unavailable, the SV200 leverages INS technology to maintain continuous navigation. This enables reliable positioning and attitude tracking in tunnels, urban canyons, and other GNSS-challenged environments.

Entry-Level Solution

Offering an entry-level GNSS/INS solution, the SV200 is designed to deliver reliable positioning, heading, and navigation performance for autonomous driving, mobile mapping, and marine navigation applications.

GNSS+INS Fusion

Precise When Signals Loss

Entry-Level Solution

GNSS+INS Fusion

Precise When Signals Loss

Entry-Level Solution

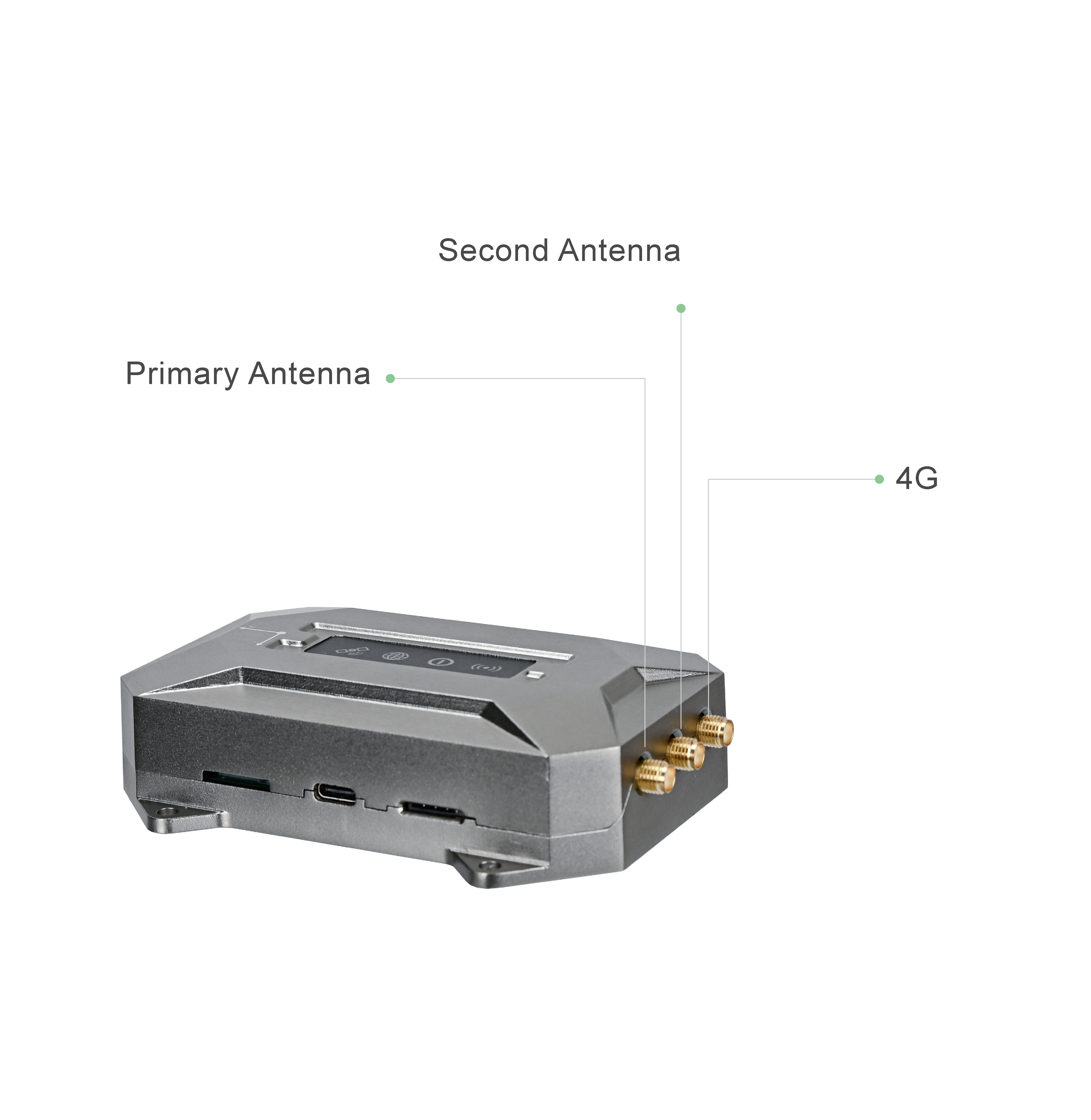

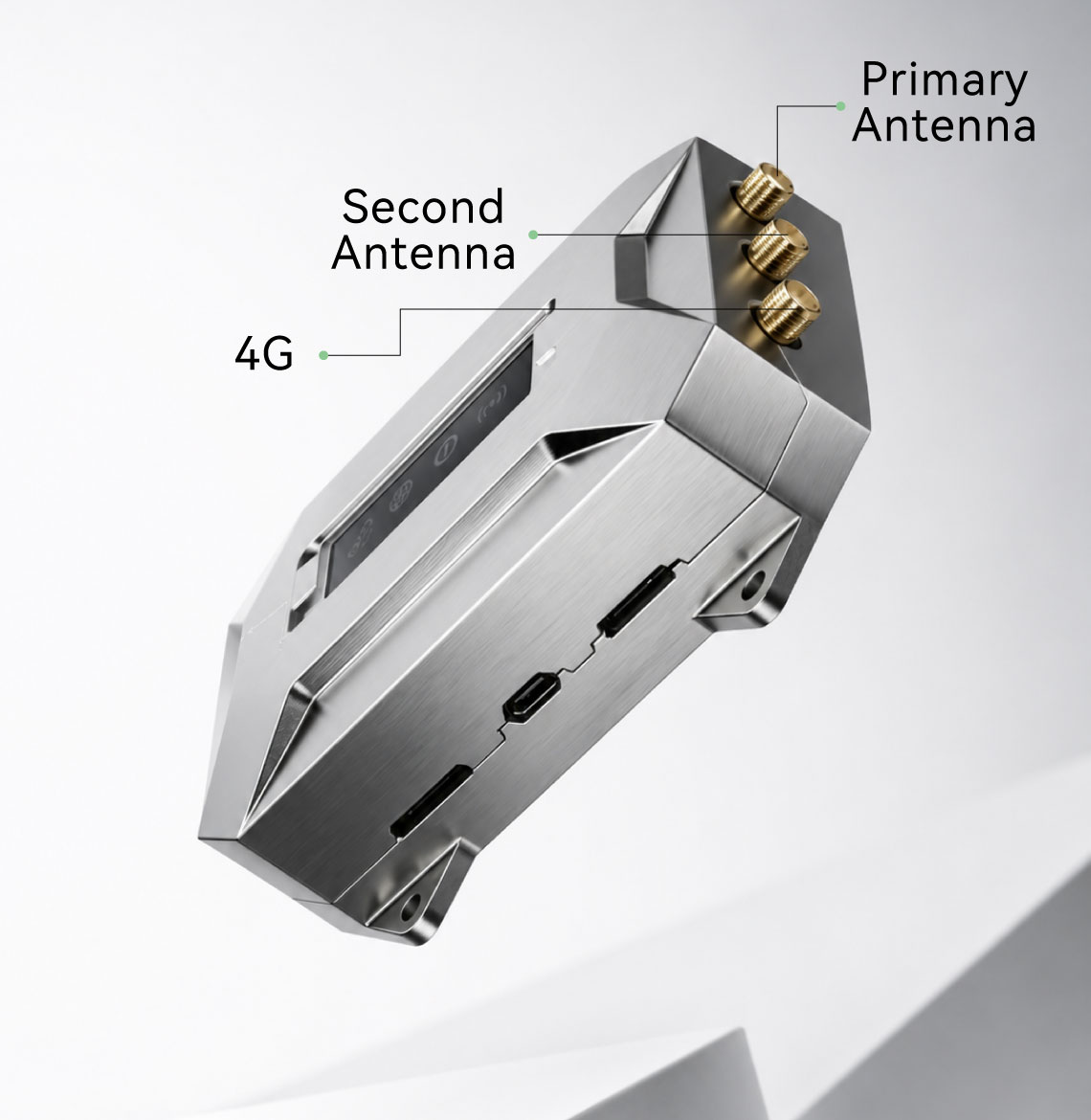

Dual-Antenna Design

The dual-antenna design integrates primary and secondary GNSS antennas, enabling accurate heading information. This provides reliable orientation information for autonomous navigation, marine applications, and mapping platforms.

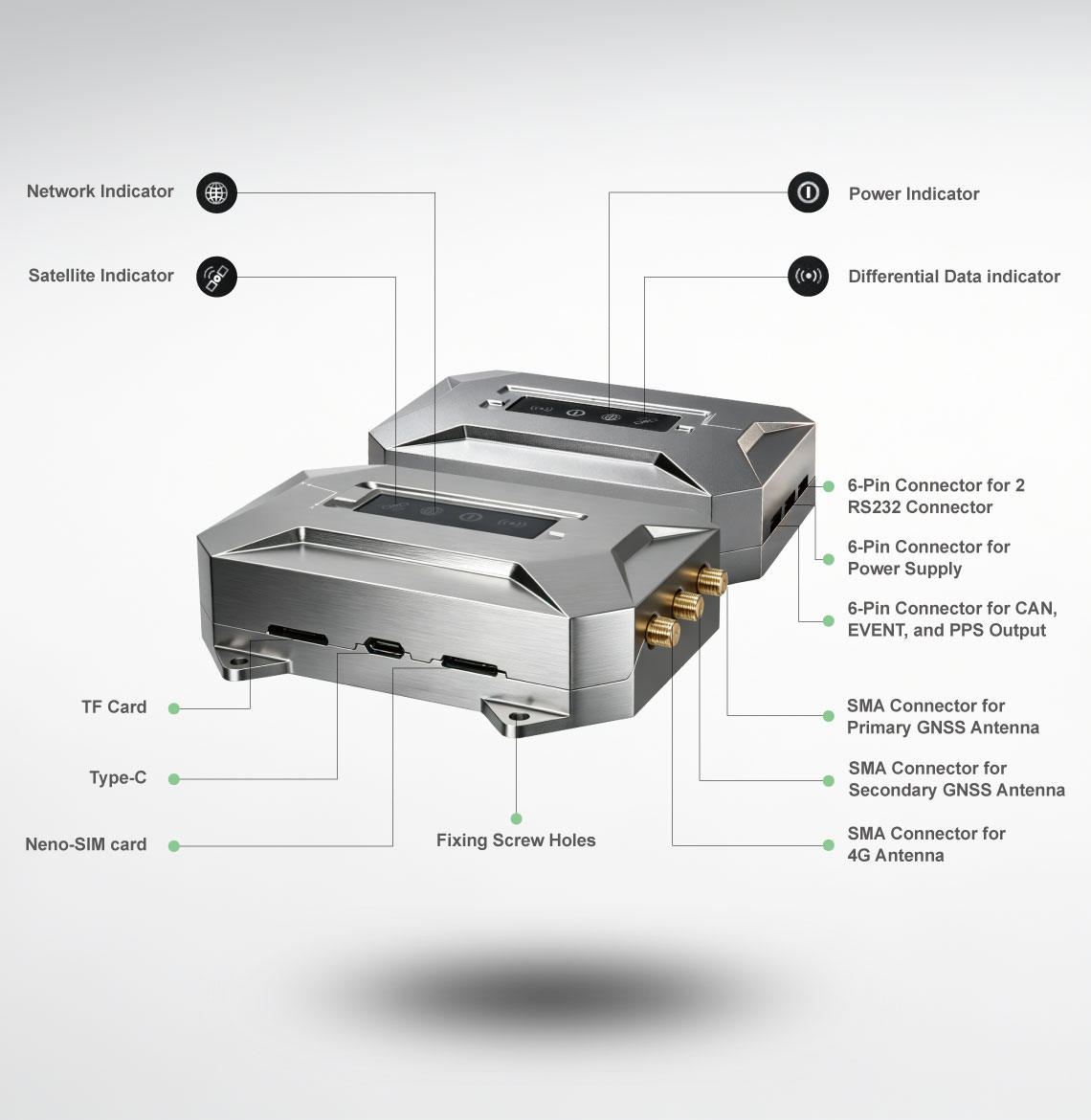

Multiple Interface Support

Supporting RS232, CAN, PPS, EVENT, and 4G, the SV200 INS integrates easily with external sensors, controllers, and onboard systems. Flexible communication options simplify deployment across diverse navigation platforms.

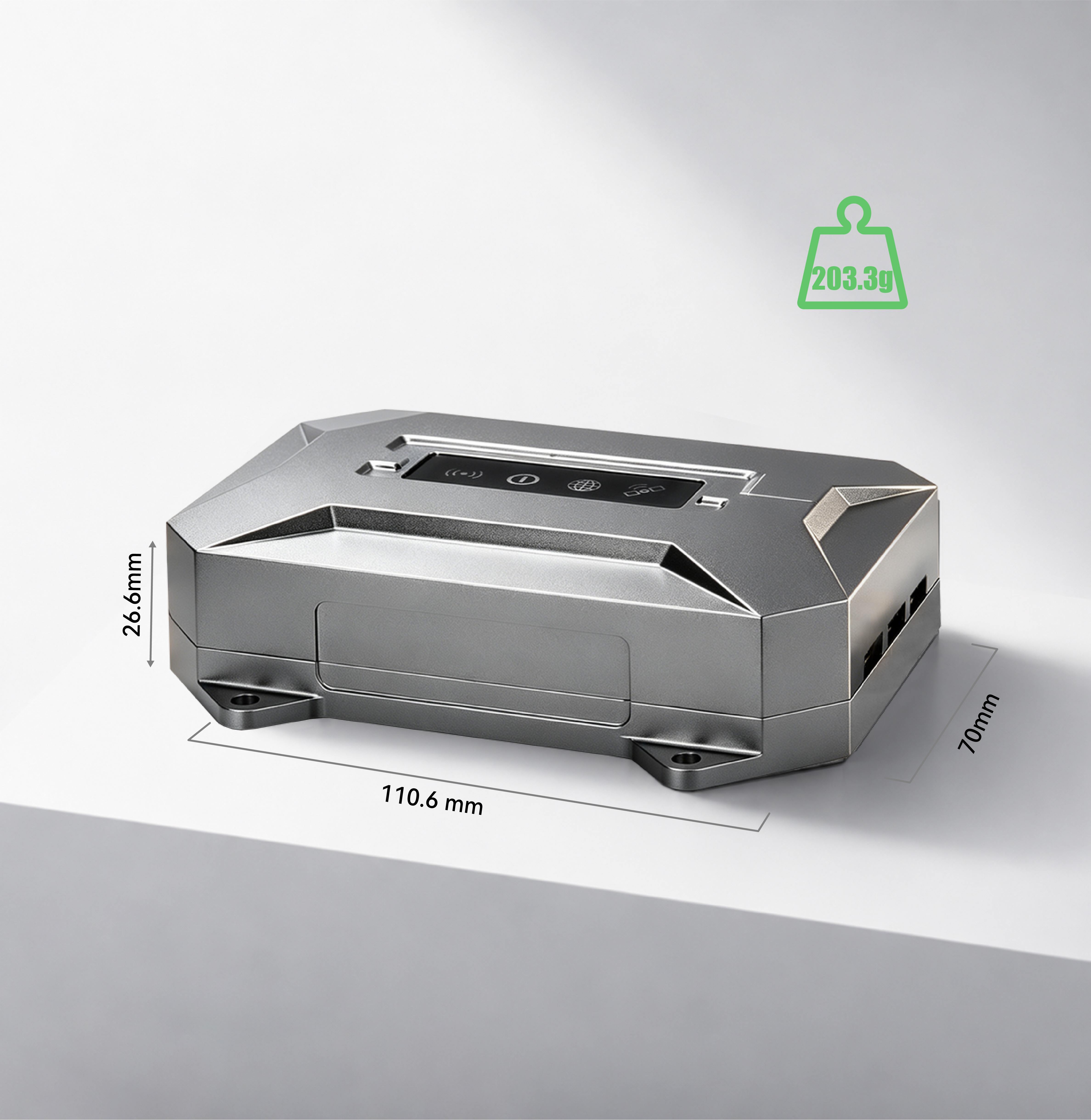

Small Size, Big Capability

With dimensions of only 110.6 × 70 × 28.6 mm and a weight of 203.3 g, the SV200 INS can be easily integrated into space-constrained systems. The compact design simplifies installation while maintaining reliable navigation performance.

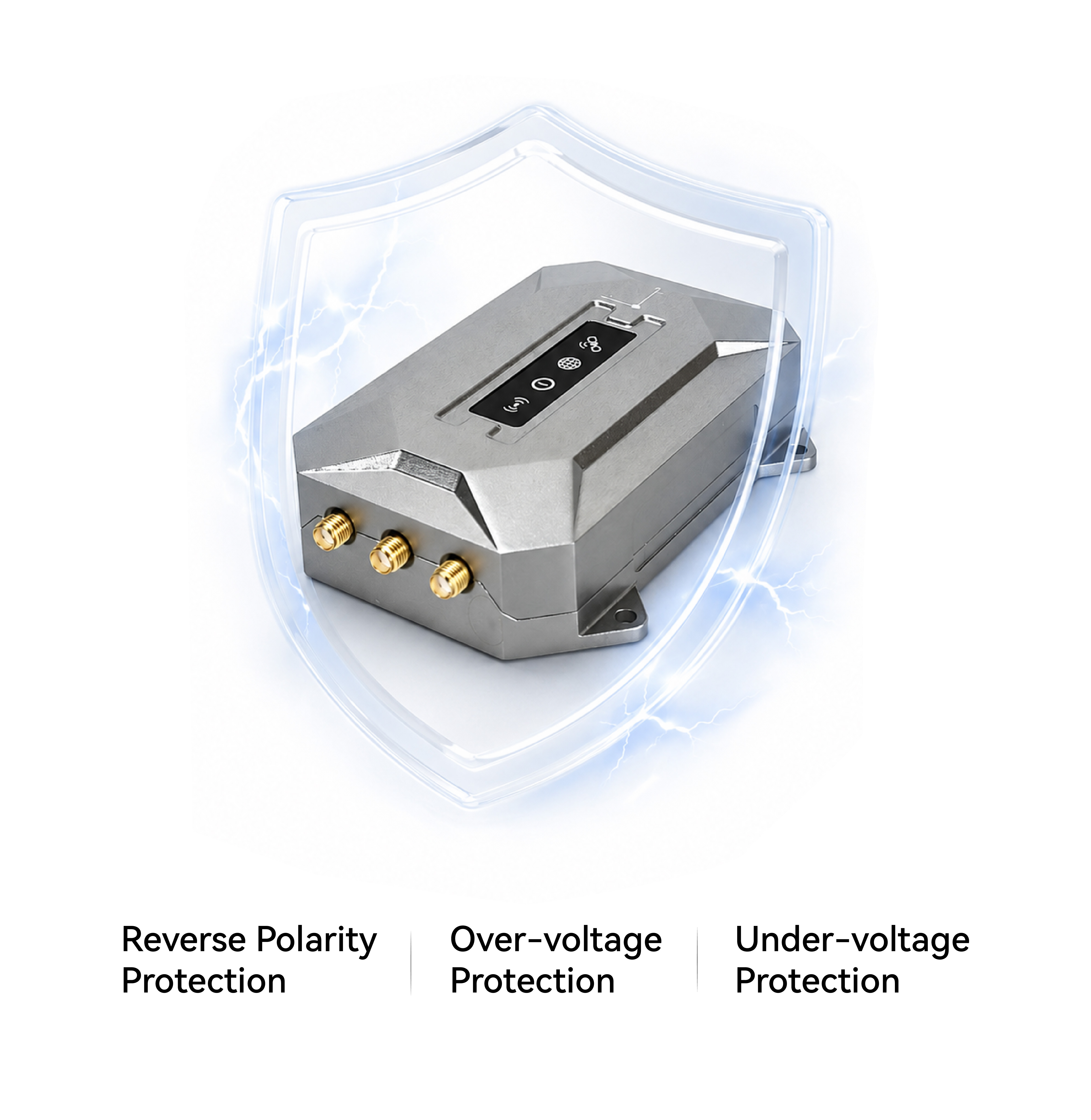

Reliable Operation with Power Protection

Engineered for long-term deployment, the SV200 INS delivers dependable navigation performance with an MTBF exceeding 20,000 hours. Integrated reverse polarity, over-voltage, and under-voltage protection help maintain stable and safe operation in demanding vehicle-mounted, marine, and industrial environments.

Industries & Applications

Unmanned Automation

Marine Applications

Vehicle Navigation

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

Velocity Accuracy

0.03m/s

Heading Accuracy

(0.2/R)°
R (unit: meter) is the distance of the baseline

INS PERFORMANCE

IMU Type

MEMS

Gyroscope

- Bias Repeatability: 0.4°/h
- Range: ±350°/s
- Bias Instability: 1.6°/h (XY), 1.3°/h (Z)
- Angle Random Walk: 0.08°/√h (XY), 0.08°/√h (Z)

Accelerometer

- Range: ±8g
- Bias Repeatability: 15 mg
- Bias Instability: 16 μg
- Velocity Random Walk: 35 mm/s/√h

IMU data update rate

100Hz

GENERAL

Size

110.6×70×28.6 mm, including connectors

Weight

203.3 g

Housing material

Aluminum Alloy

SV200 INS GNSS Receiver
