STSA9
ANDROID TOTAL STATION

Smart Precision, Boundless Efficiency

Become a Dealer

Home

Products

STSA9
ANDROID TOTAL STATION

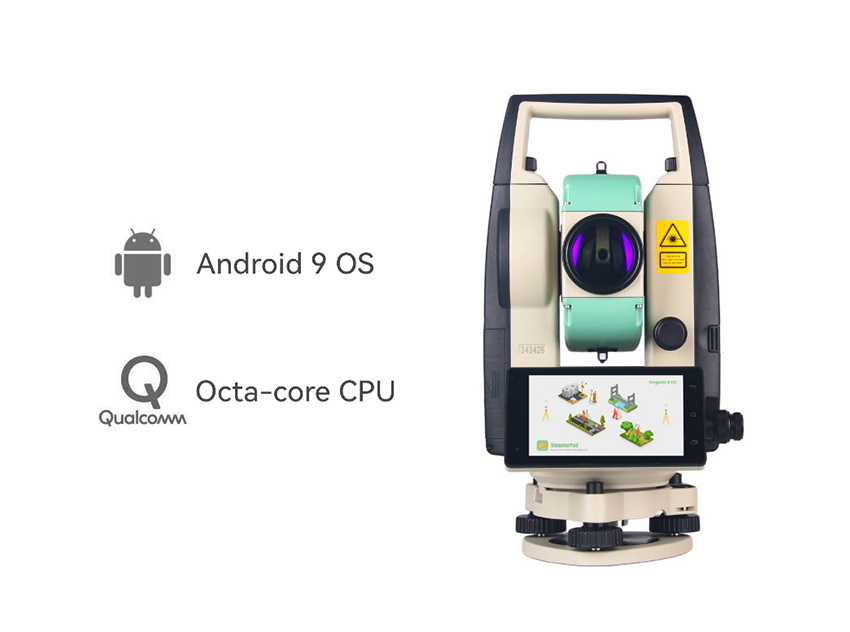

Strong System

Powered by a Qualcomm octa-core CPU and Android 9 OS, the STSA9 ensures fast data processing, accurate calculation, and seamless 3rd-party app integration.

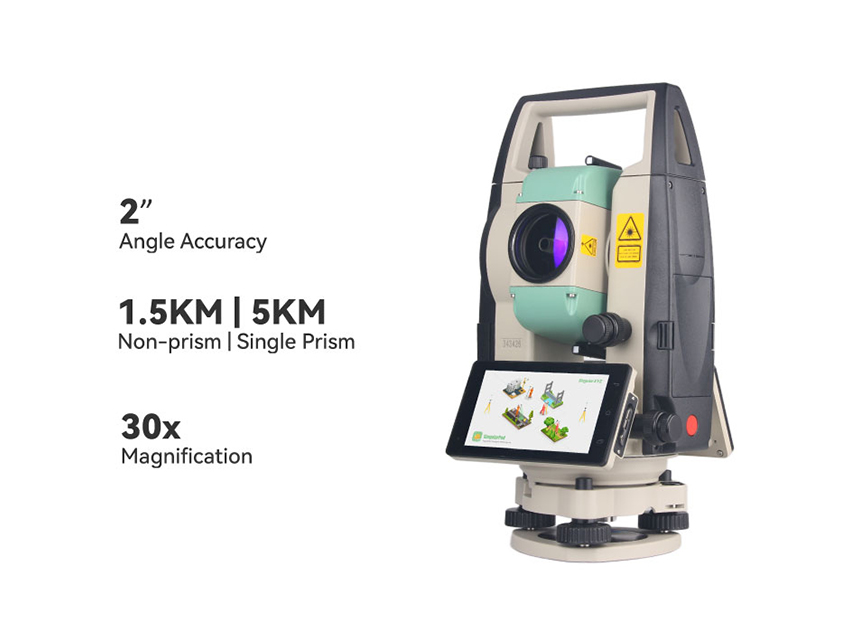

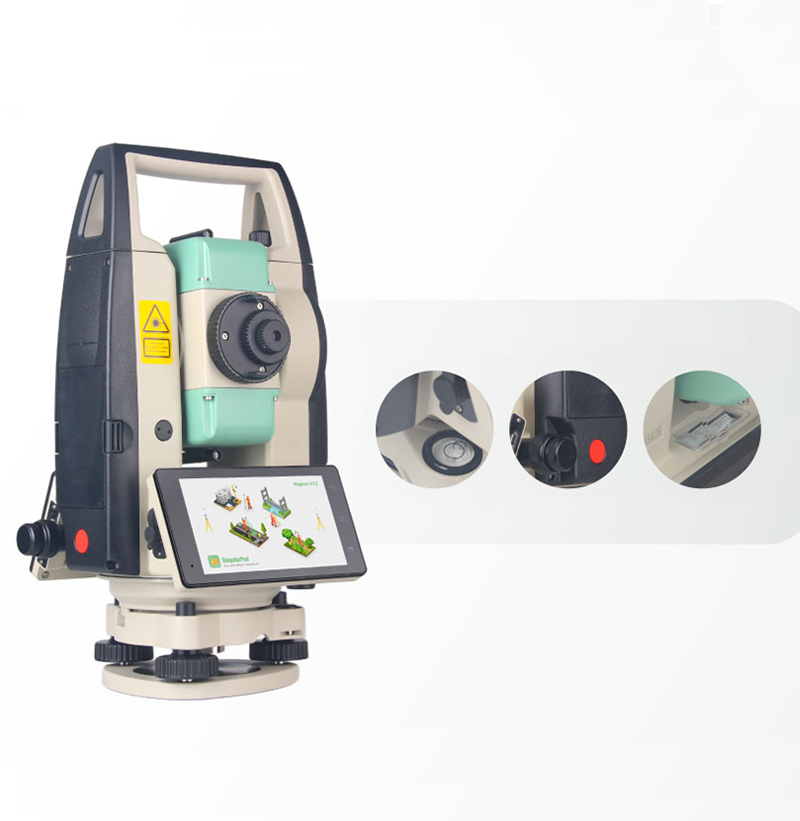

Precise Measurement

Equipped with a high-performance EDM, the total station delivers 2″ angle accuracy and exceptional distance measurement capabilities—up to 1,500m in reflectorless mode and 5,000m with a prism.

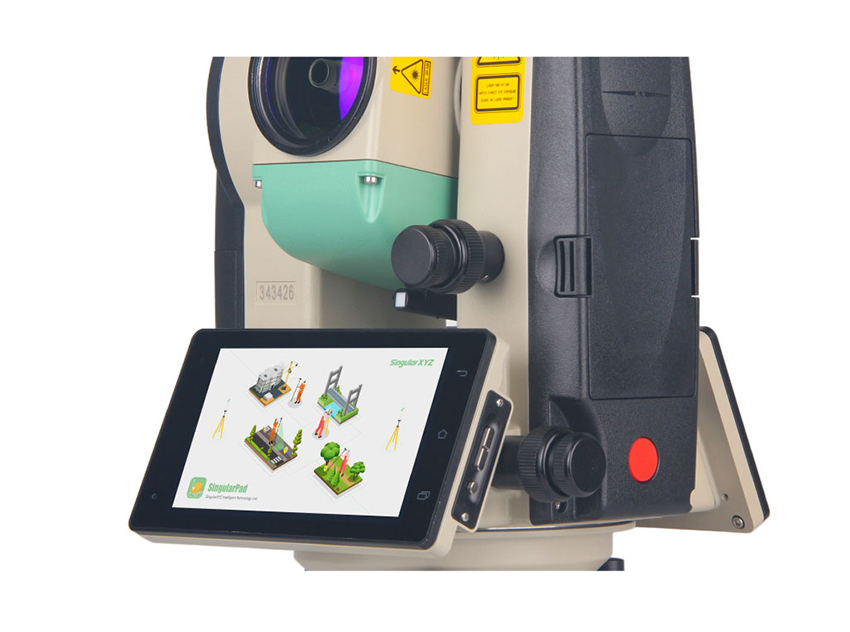

Dual-Side 5" Touch Screen

The STSA9 features dual-side 5-inch HD touchscreens that are sunlight-readable, paired with user-friendly keys for smooth onboard operations and clear graphic display.

Strong System

Precise Measurement

5" Touch Screen

Strong System

Powered by a Qualcomm octa-core CPU and Android 9 OS, the STSA9 ensures fast data processing, accurate calculation, and seamless 3rd-party app integration.

Precise Measurement

Equipped with a high-performance EDM, the total station delivers 2″ angle accuracy and exceptional distance measurement capabilities—up to 1,500m in reflectorless mode and 5,000m with a prism.

Dual-Side 5" Touch Screen

The STSA9 features dual-side 5-inch HD touchscreens that are sunlight-readable, paired with user-friendly keys for smooth onboard operations and clear graphic display.

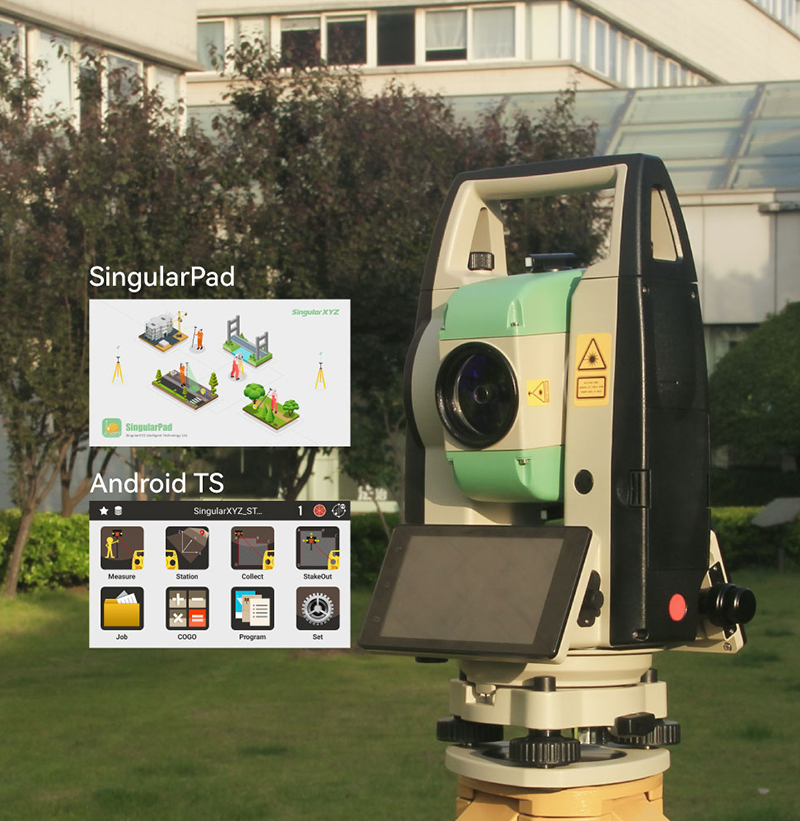

Flexible Field Software

Benefiting from its Android OS, STSA9 supports smart field software:
- Default onboard Android software covers basic survey workflows;
- Optional SingularPad software for advanced workflows and comprehensive functionality.

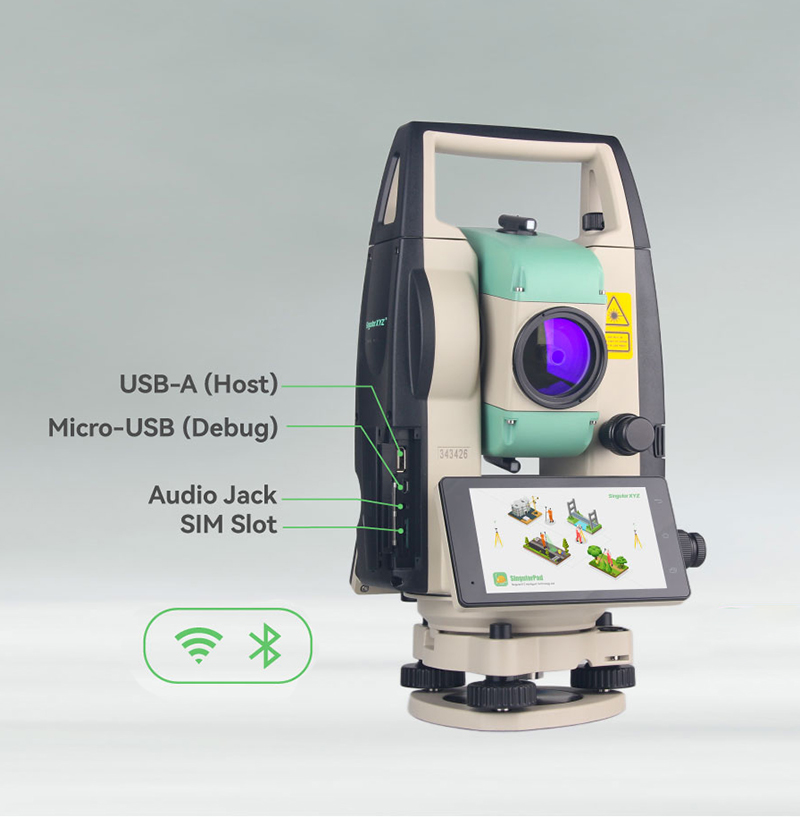

Abundant Transmission

With USB host for file access, Micro-USB for debugging, 4G/WiFi for connectivity, plus Bluetooth and audio jack support, STSA9 meets diverse data transmission needs.

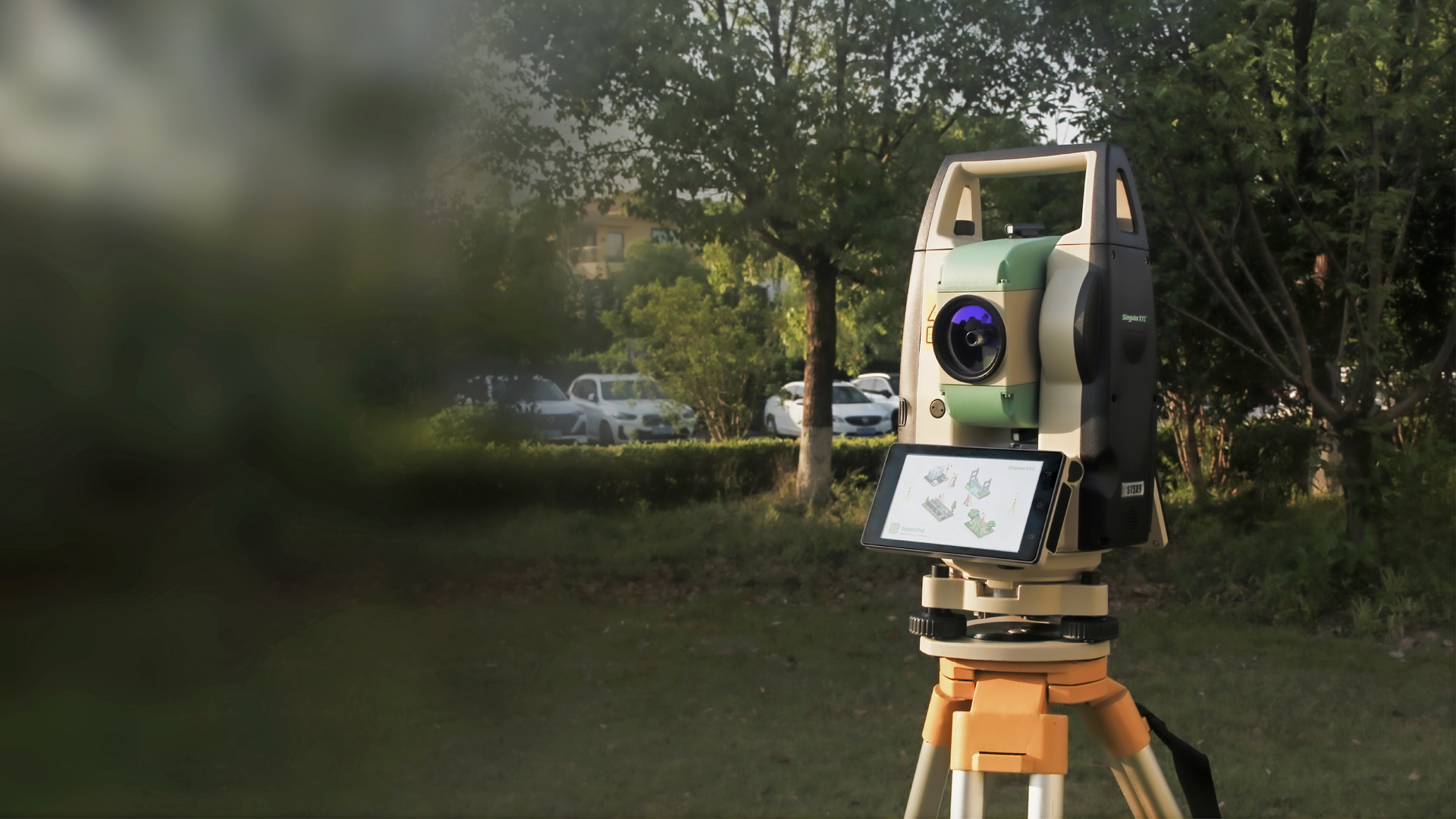

Build For Field Efficiency

Built-in physical levels and digital level bubbles for quick leveling, laser plummet for easy centering, and a manual measure button—all streamline your workflow.

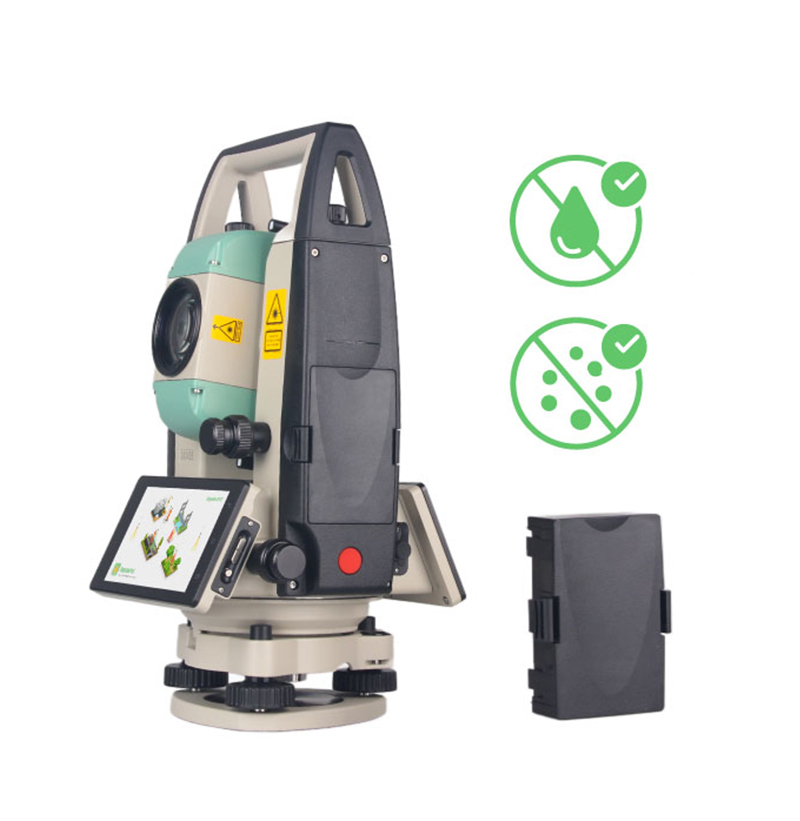

Durable Design

With a 5000mAh Li-ion battery enabling 8 hours of use and a backup battery included, the STSA9 supports full-day work. The IP55 housing ensures protection against tough weather and jobsite conditions.

Software & Platform

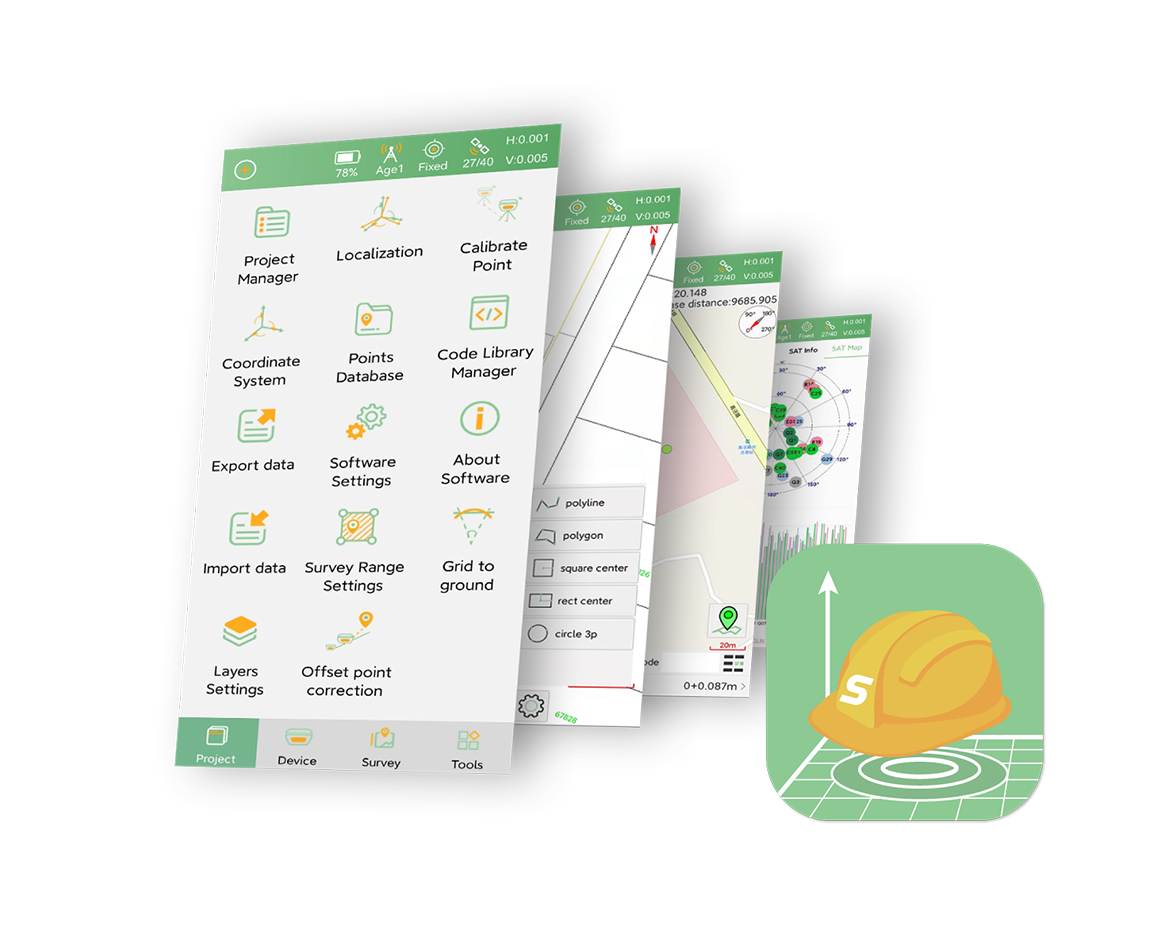

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

Surveying & Mapping

Specifications

Resources

SYSTEM

Operating system

Android 9.0

CPU

Qualcomm MSM8953

Storage

3GB RAM + 32GB ROM

MEASUREMENT

Distance Range

- Non-prism: 1500 m
- Single prism: 5000 m

Distance Accuracy (reflector)

2 mm+2 ppm

Angle Measurement Time

Angle Minimum Reading

GENERAL

Display

Dual-side 5-inch LCD graphic touch screen

Resolution

1280*720

Size

206mm × 200mm × 353mm

Weight

6.0 kg

Waterproof & dustproof

IP55

Plummet

Laser plummet
