SingularXYZ Intelligent Technology

XBASE
GNSS RECEIVER

Built for Distance, Built for Base

Become a Dealer

Home

Products

XBASE
GNSS RECEIVER

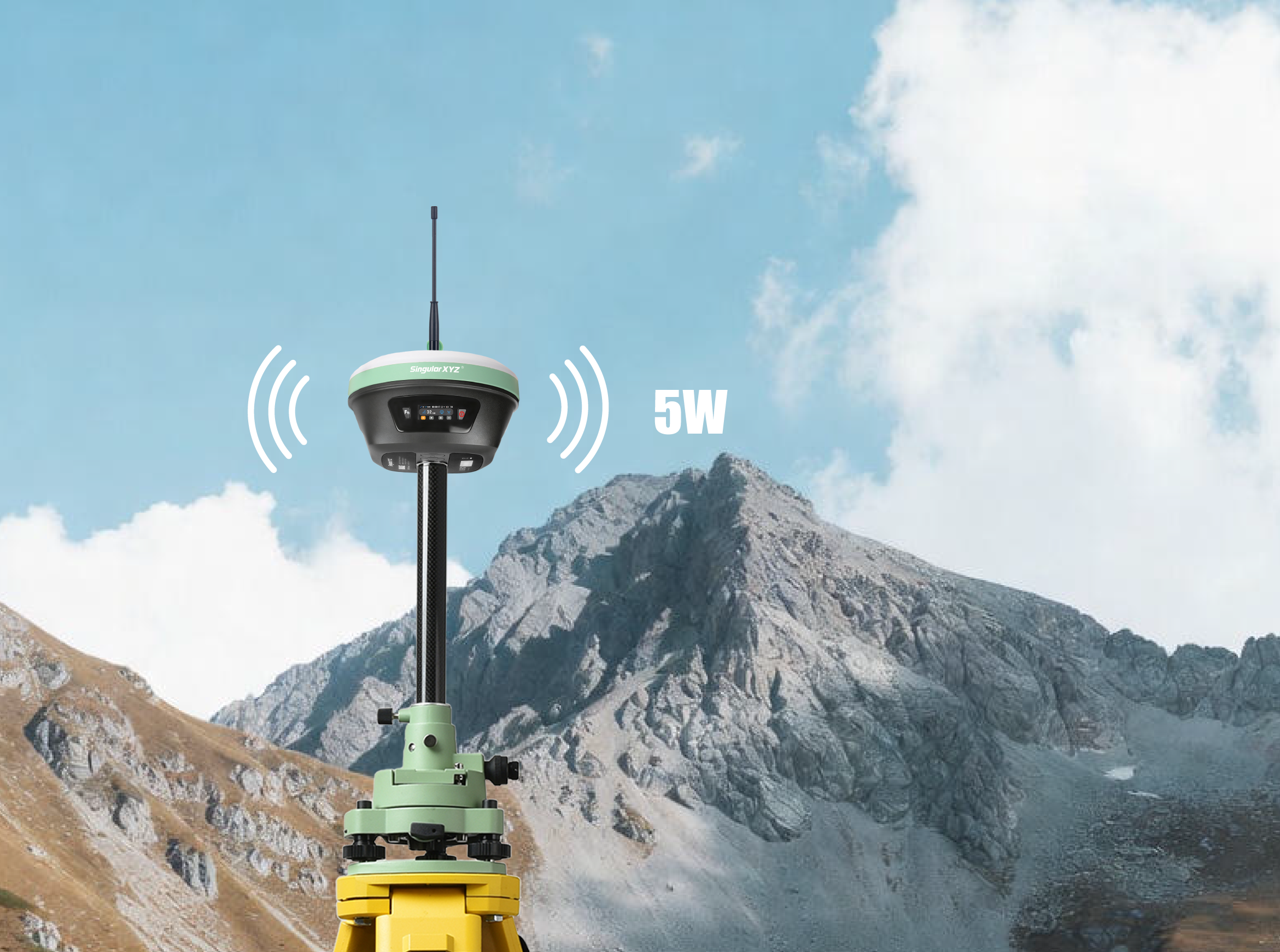

Long-range 5W Radio

Designed as a dedicated base station, Xbase integrates a top-mounted antenna and a built-in 5W radio to reach up to 25 km in ideal conditions. It supports mainstream radio protocols and features an internal 4G module, enabling both radio-based and network-based RTK operation.

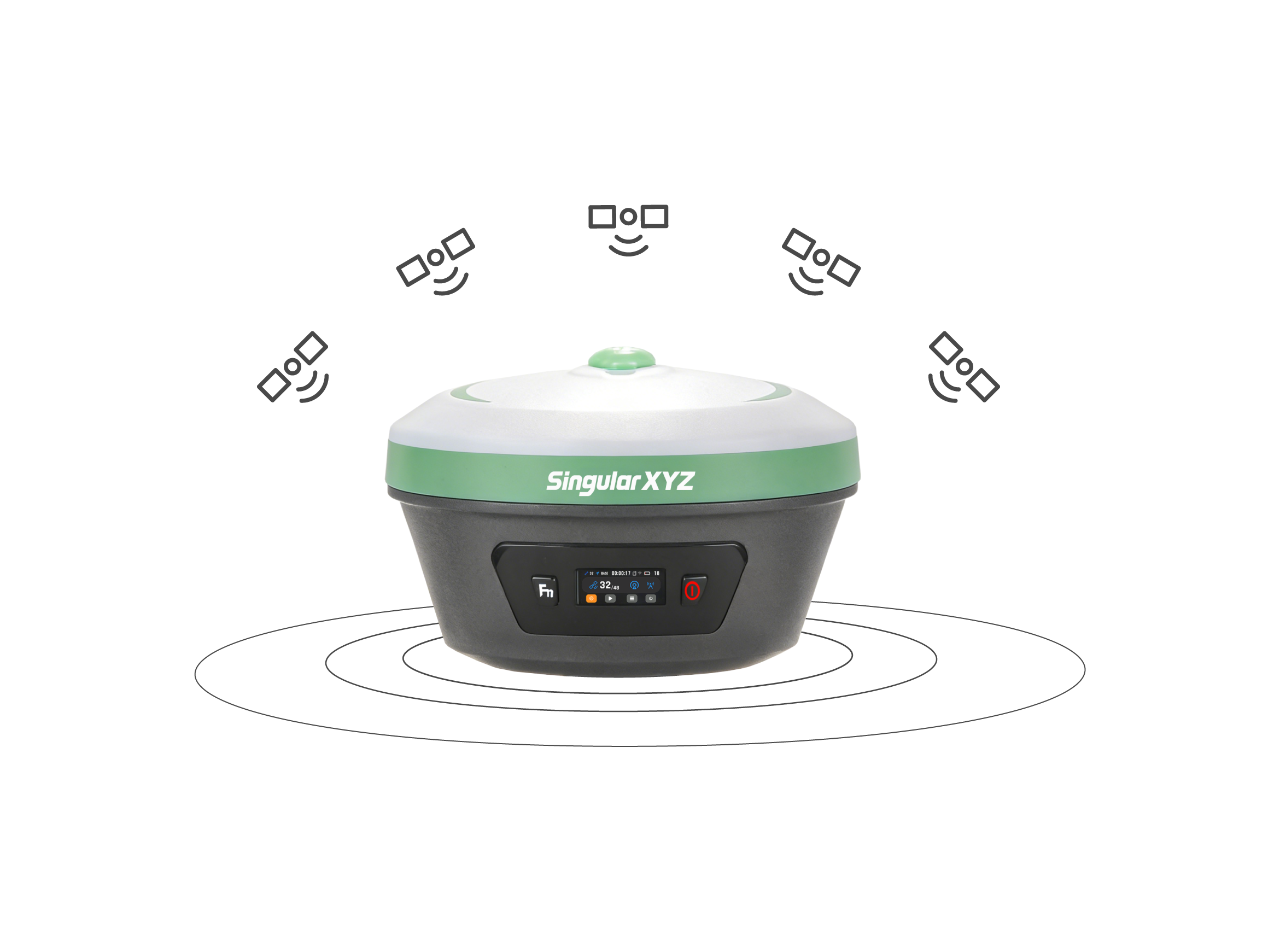

Full-Constellation, Reliable Corrections

Powered by a 1408-channel GNSS engine, Xbase supports full-constellation tracking with strong anti-interference performance, delivering stable, high-quality correction data for reliable RTK operation in challenging field environments.

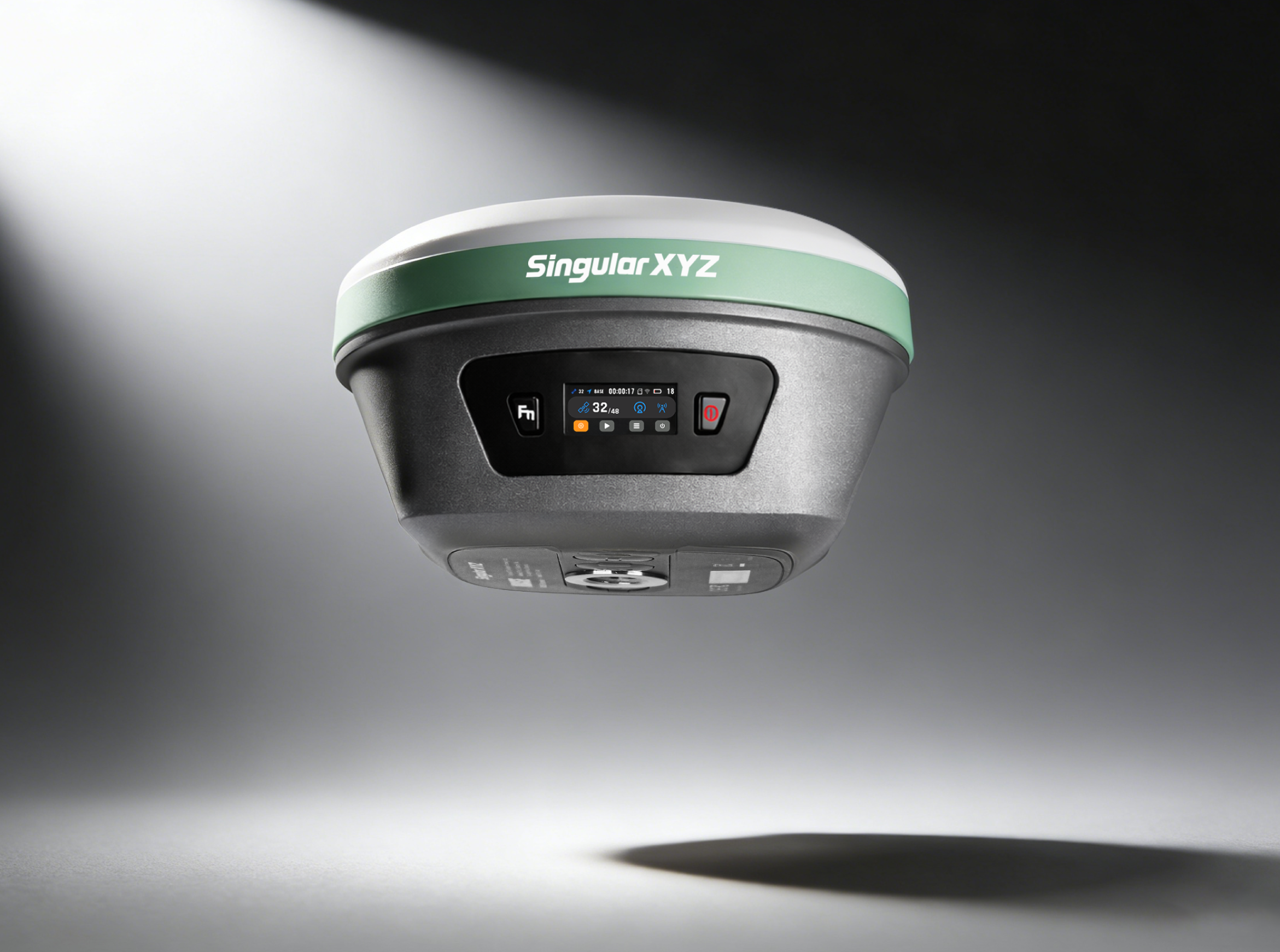

Large HD Color Screen

The 1.1-inch front display provides clear status visibility and simple configuration access, allowing users to monitor key information and complete basic setup quickly in the field.

Long-range 5W Radio

Full-Constellation

1.1” Front Display

Long-range 5W Radio

Full-Constellation, Reliable Corrections

Large HD Color Screen

The 1.1-inch front display provides clear status visibility and simple configuration access, allowing users to monitor key information and complete basic setup quickly in the field.

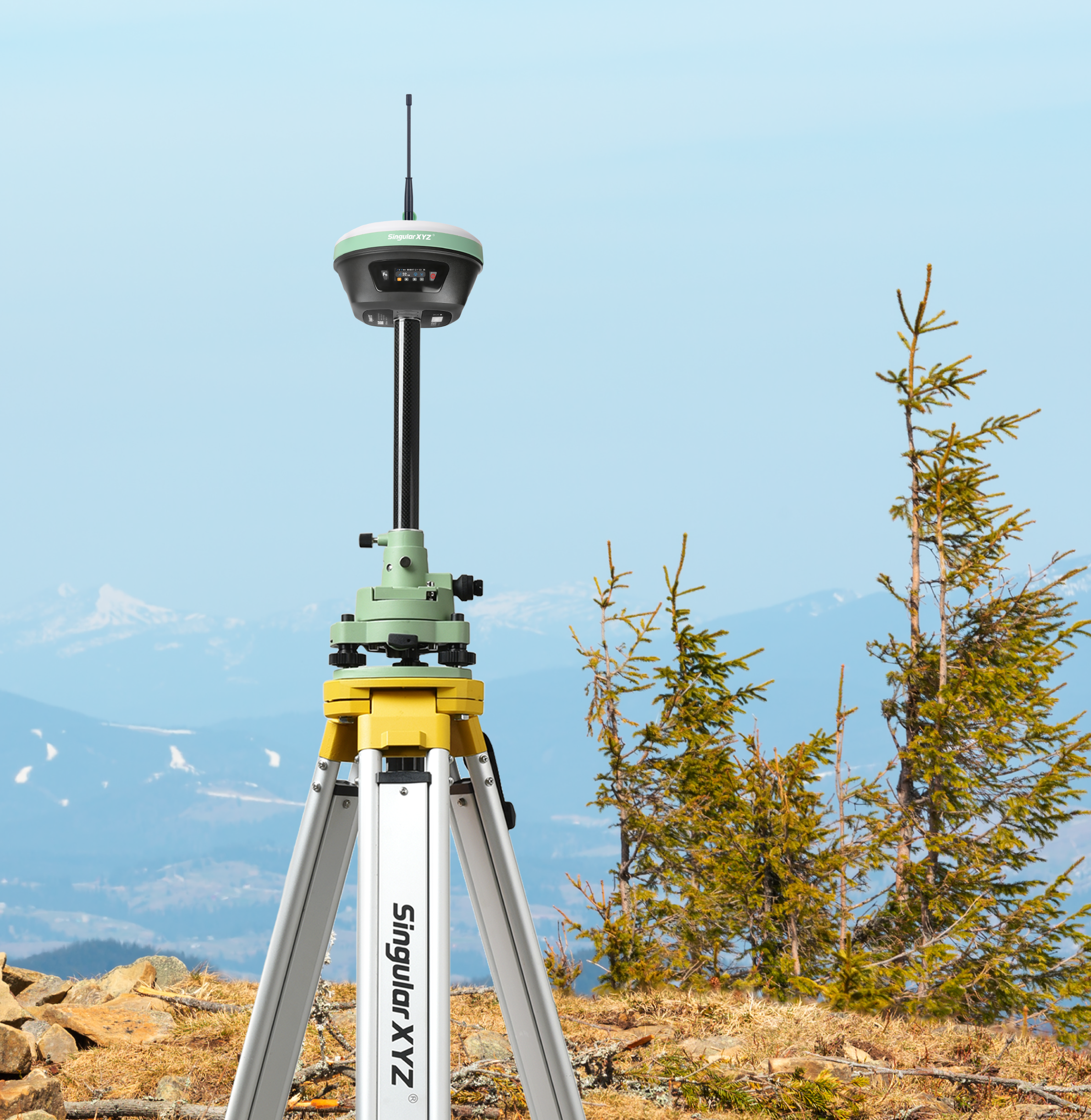

Smart Base Station

Xbase supports auto-startup as a smart base station, enabling one-click activation of radio mode to broadcast correction data without additional configuration or software. By automatically recording previous base station locations and re-matching them when restarted within a 5m range, Xbase ensures consistent reference positioning with minimal on-site setup

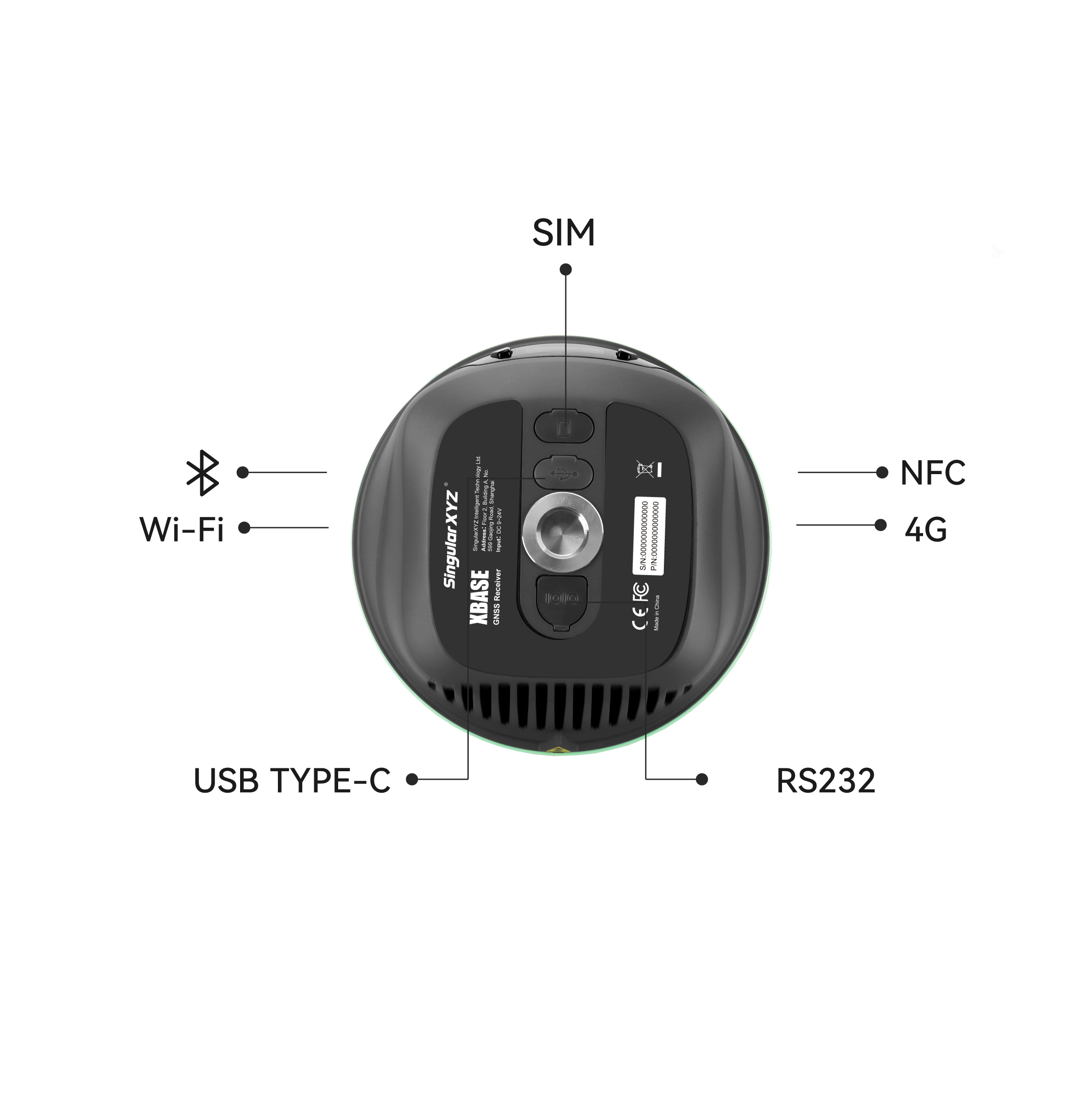

Abundant Transmission

With flexible transmission options including WiFi webpage, Bluetooth, USB, and RS232, Xbase supports smooth configuration and stable data communication, ensuring efficient integration into various field workflows.

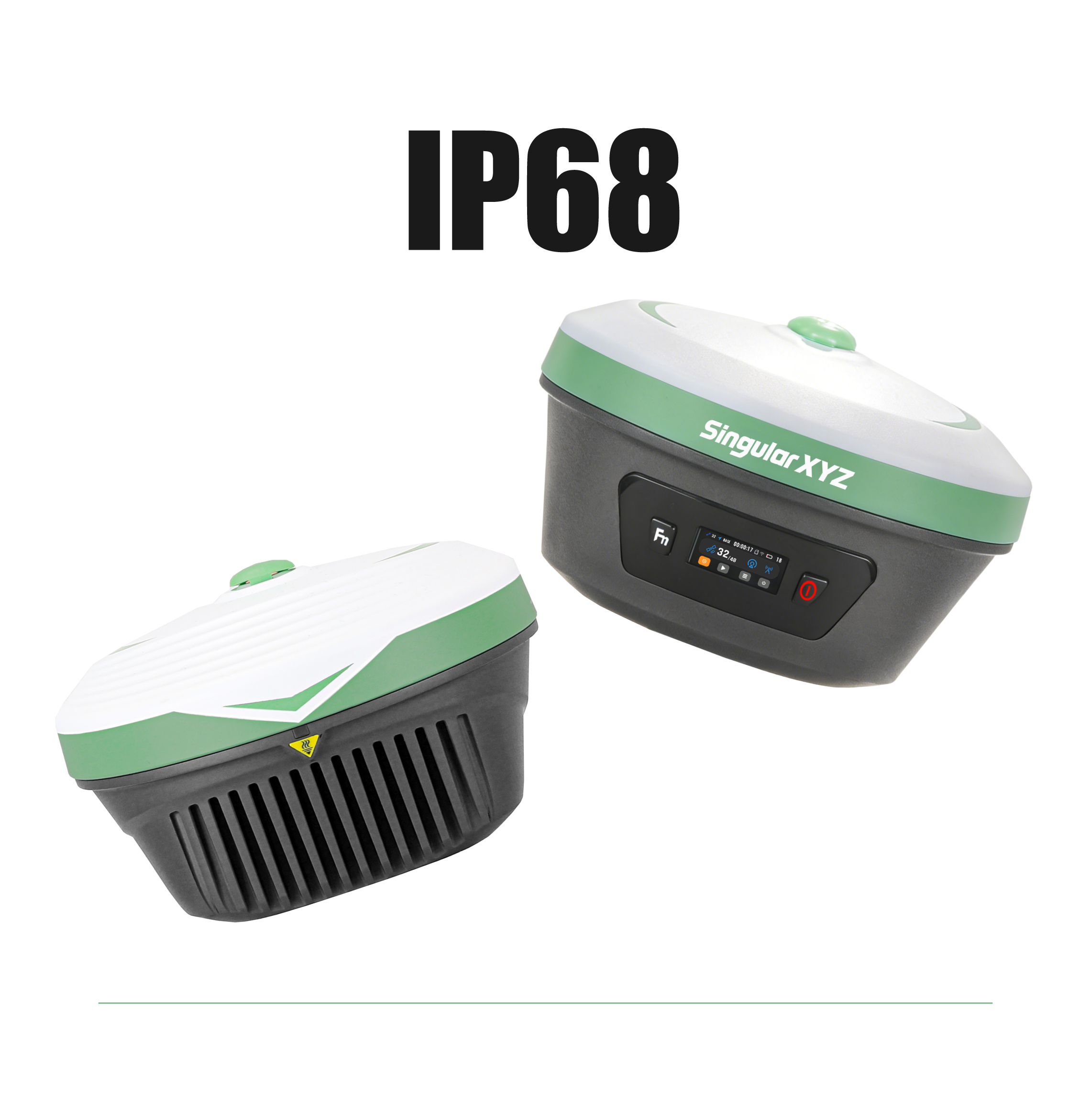

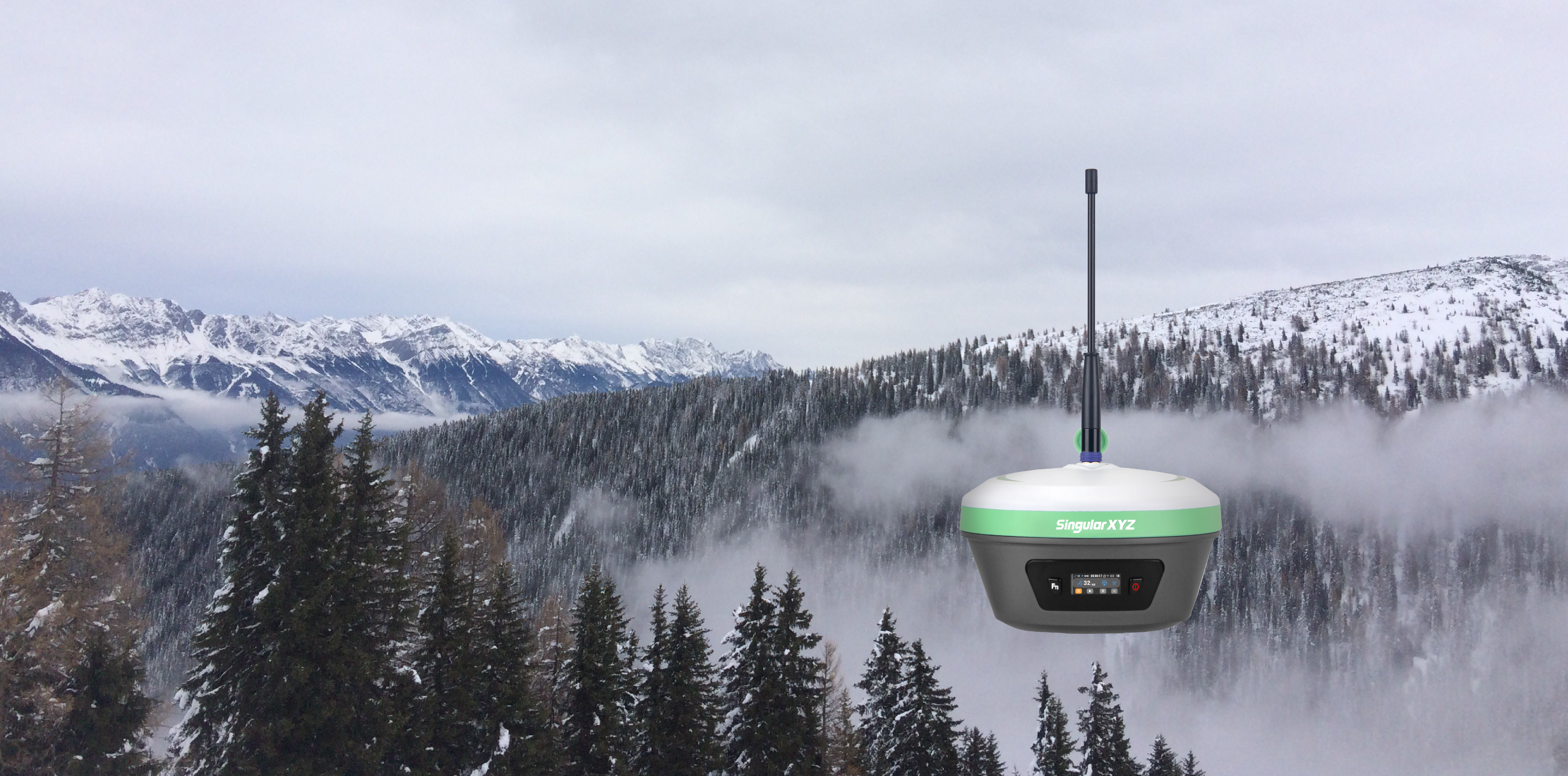

IP68 Durable Design

Xbase is engineered for demanding environments with IP68 protection, a robust magnesium-aluminium housing, heat-dissipating fins, and solid drop resistance, delivering long-lasting durability and reliable performance in harsh field conditions.

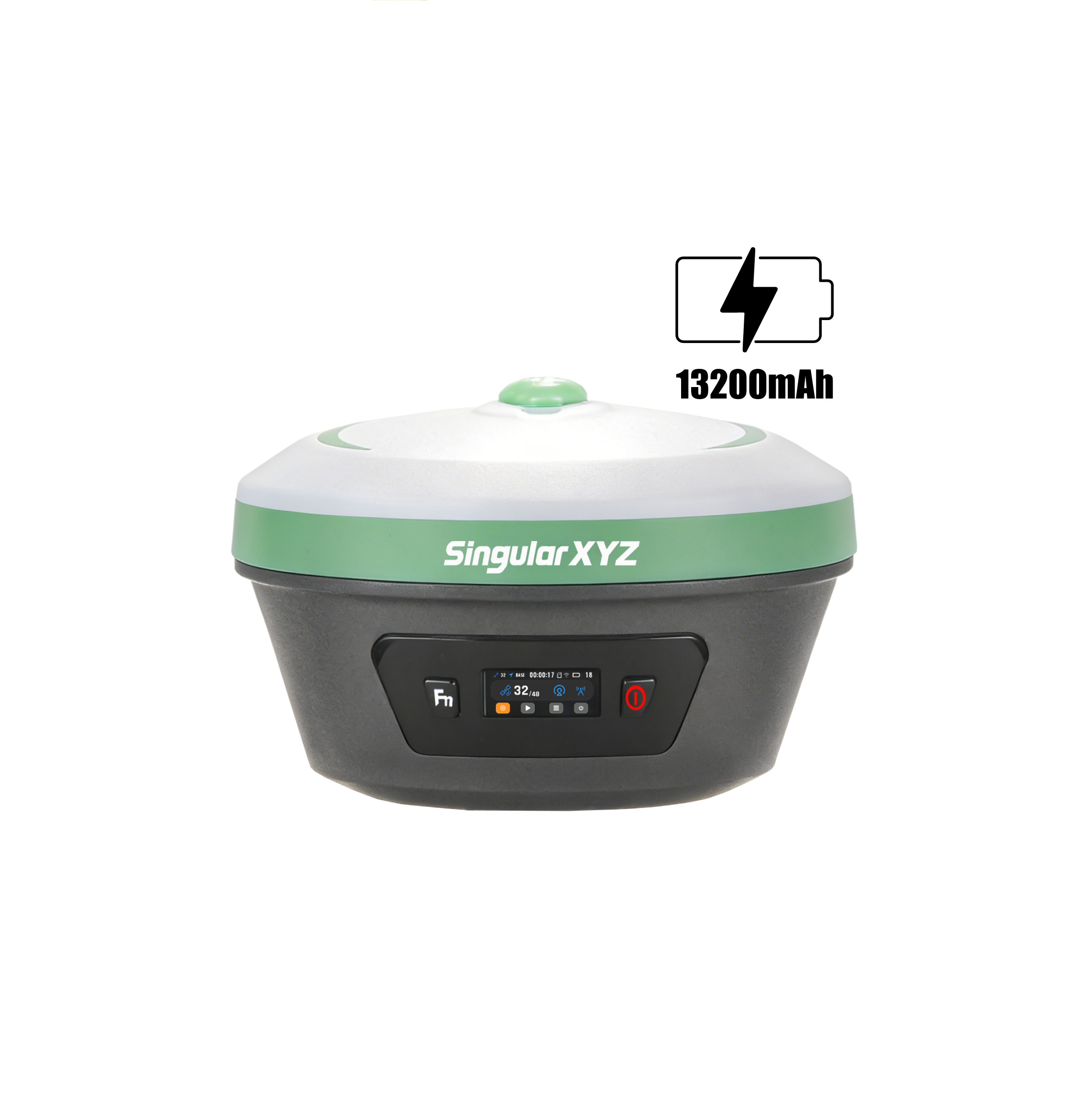

13200mAh Battery

Equipped with a 13,200mAh high-capacity battery, Xbase ensures dependable, uninterrupted operation throughout the entire day, reducing the need for external power and enhancing field productivity.

Software & Platform

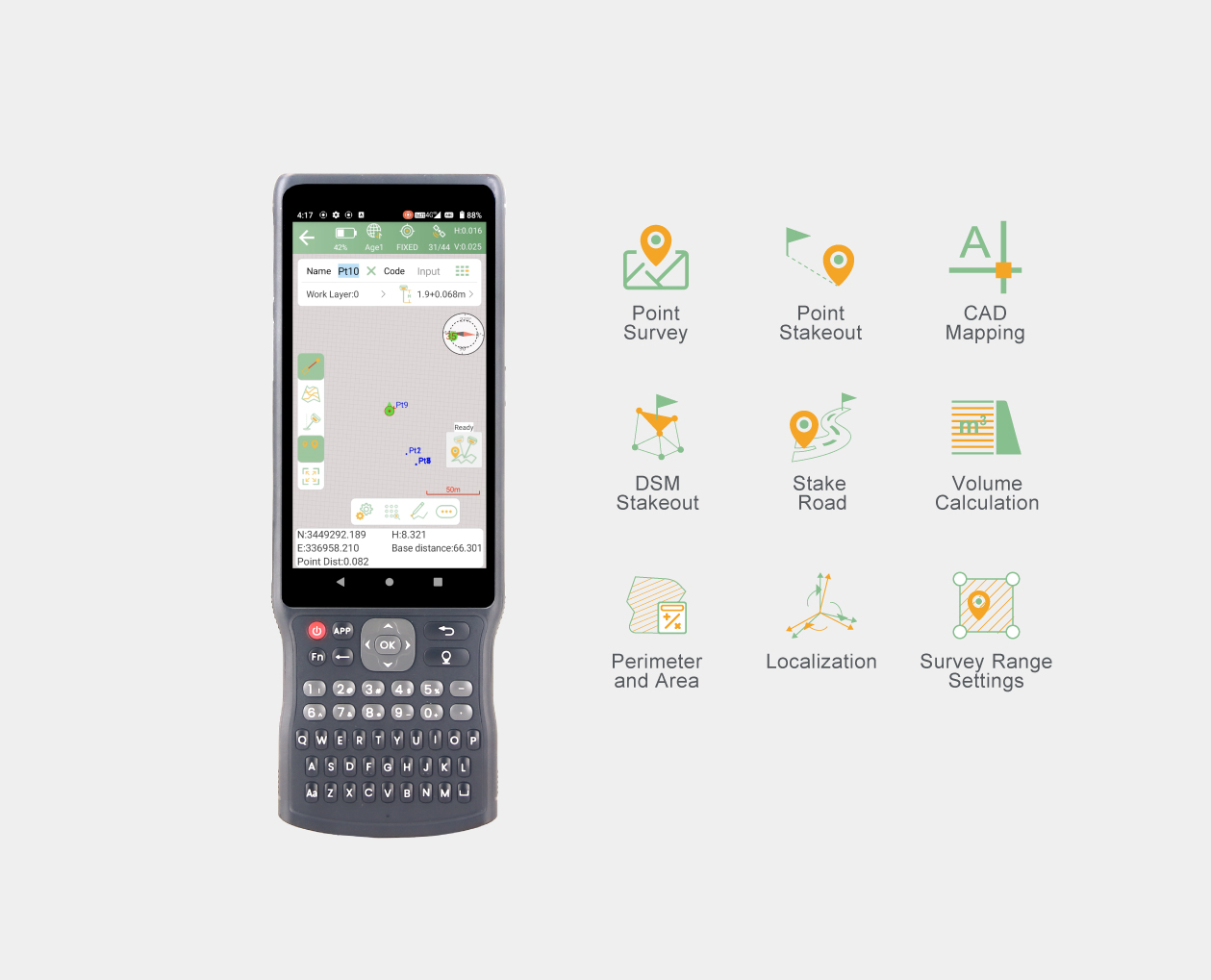

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Initialization Time

<5s (typical)

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

Re-acquisition

<1s

COMMUNICATION

UHF Modem

- Frequency range: 410-470MHz
- Protocol: TRIMATLK, SATEL, TRANSEOT, TRIMMARK3, CSS, etc.
- Channel spacing: 25KHz
- Transmit power: 2W~5W selectable

Bluetooth

BT4.0 Dual Mode

WiFi

IEEE 802.11 b/g/n

Interface

- 1 7-pin lemo port for RS232
- 1 SMB connector for UHF antenna
- 1 Type-C USB port
- 1 SIM card slot for 4G

4G modem

Support

NFC

Support

GENERAL

WebUI

Accessible via Wi-Fi

Battery

13200 mAh, over 7-8 Hours Working Time in Radio Base Mode

Size

Φ145mm × 93mm

Weight

1204g

Waterproof & Dustproof

IP68
